Hitachi

JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


4.3.19 Search Server window

The Search Server window searches collection conditions for each server name. The following figure shows the Search Server window.

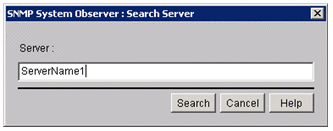

Figure 4‒48: Search Server window

[Figure]

The items to be set are:

Server

Specify the host name or the IP address for the name of the server you want to search based on the collection conditions. You can specify a maximum of 255 bytes.

Search

Start a search with the condition specified for Server.

Searches conditions from the top of the collection condition list, and moves the items that are perfect matches to the collection condition of the applicable server. If no server name matches perfectly, the selected item is moved to the collection condition of the server that has the name which was found first through a forward match.

If no applicable server name exists, a warning dialog box appears.

When you specify an IP address in the Server text box, a matching string is searched through the IP address section in the list of collection conditions.

Important

If the OS that opened the window is Linux, the host names are case sensitive. Be careful when you enter the server name as a collection condition.
