4.3.5 Bulk Apply Collection Condition wizard

With the Bulk Apply Collection Condition wizard, you can apply the collection conditions that have been set for a specified instance to other instances. You can apply the collection conditions to multiple instances. Also, you can select whether to apply the collection mode, threshold value settings, and command settings for each subresource. Figures 4-26 to 4-28 show the Bulk Apply Collection Condition wizard.

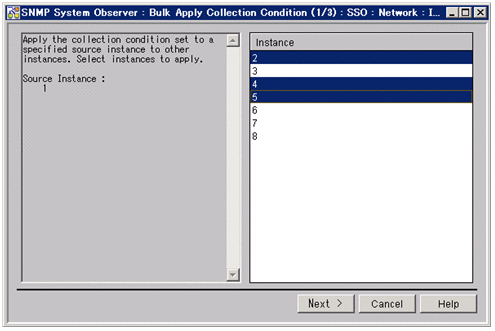

Figure 4‒26: Bulk Apply Collection Condition (1/3) wizard

The items to be set are:

Instance

Select the instances to which you want to apply the collection conditions. You can select multiple instances.

Figure 4‒27: Bulk Apply Collection Condition (2/3) wizard

The items to be set are:

Subresource

Select the subresources to which you want to apply the collection conditions. You can select multiple subresources.

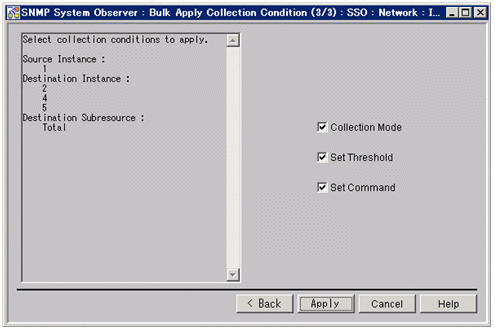

Figure 4‒28: Bulk Apply Collection Condition (3/3) wizard

The items to be set are:

Collection Mode

Select this check box to apply the collection mode (whether to save data and whether to monitor threshold values).

Set Threshold

Select this check box to apply the threshold value settings.

Set Command

Select this check box to apply the command settings.
