Hitachi

JP1 Version 12 JP1/SNMP System Observer Description, Operator's Guide and Reference


4.3.6 Set Collection Time Zone window

The Set Collection Time Zone window sets a time period during which resources are to be collected. The following figure shows the Set Collection Time Zone window.

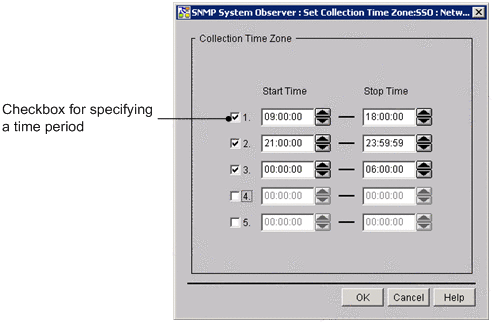

Figure 4‒29: Set Collection Time Zone window (for collecting resources)

[Figure]

The items to be set are:

Checkbox for specifying a time period

Set whether to enable the specified collection time period. Only a time period in a selected line is enabled. By default, no time period is specified.

Start Time

Specify a time for starting collection between 00:00:00 and 23:59:59.

Stop Time

Specify a time for stopping collection between 00:00:01 and 24:00:00. Specify a later time than the start time.
