4.3.4 Register Ping Address window

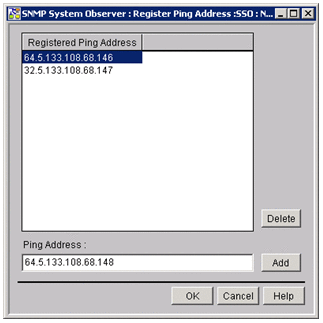

The Register Ping Address window registers a ping address as an instance. The following figure shows the Register Ping Address window.
|
|
![[Figure]](GRAPHICS/SS050180.GIF)
The items to be set are:
- Registered Ping Address
-
This box displays a list of registered addresses.
- Delete
-
This button deletes an address from the Registered Ping Address box.
- Ping Address
-
Specify a ping packet size, timeout length, and IP address, delimiting the values with a period (.). You can omit the packet size and timeout length, but you cannot omit the period (.). The next table explains the items to be specified.
Item
Description
Packet size
Specify a packet size in 32 to 2048 bytes. The default is 64 bytes.
Timeout length
Specify a timeout length between 1 and 60 seconds. The default is 5 seconds.
IP address (for IPv4)
Specify an IP address in the format n.n.n.n (where n is an integer between 0 and 255). However, you cannot specify 0.0.0.0 or 255.255.255.255.
IP address (for IPv6)
Specify an IP address in the format n:n:n:n:n:n:n:n (where n is a hexadecimal number between 0000 and ffff). Note that the address 0000 can be replaced with :: (two consecutive colons).
- Add
-
This button adds the information entered to the Ping Address box to the Registered Ping Address box.
