4.3.3 Register Instance window

The Register Instance window registers an instance when you want to collect resources for a particular instance. The following figure shows the Register Instance window.

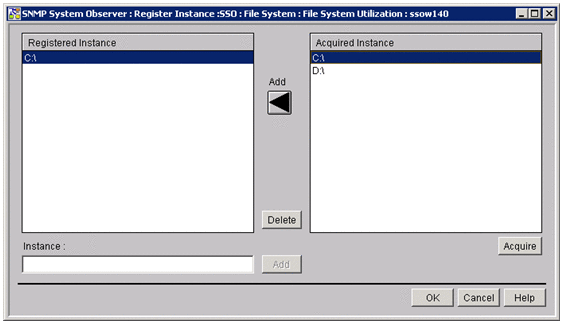

Figure 4‒24: Register Instance window

The items to be set are:

Registered Instance

This box displays the registered instances.

Acquired Instance

This box displays instances acquired from the agent targeted for collection. If you selected a resource for which you cannot obtain an instance or if the agent targeted for collection is not running, the list of instances cannot be displayed.

Add

This button adds an instance to the Registered Instance box.

Delete

This button deletes an instance from the Registered Instance box.

Instance

Specify the instance to be registered with a character string of 1 to 255 bytes.

Acquire

This button obtains a list of instances from the agent targeted for collection and displays it in the Acquired Instance box.
