2.8.1 Monitoring processes and services

(1) Monitorable processes and services

APM can monitor services whose name is 100 bytes or less long. The maximum length of the names of monitorable processes varies depending on the OS. The following table lists (by OS) the maximum length of the names of monitorable processes.

Table 2‒26: Maximum length of the names of monitorable processes

OS	Executable file name	Command line name
HP-UX (IPF)	14 bytes	1,020 bytes
Solaris	15 bytes	79 bytes
AIX	256 bytes	2,016 bytes
Linux	15 bytes	2,017 bytes
Windows	256 bytes	256 bytes

The values in Table 2-26 indicate the maximum length of a process name that APM can recognize. For example, in a system running HP-UX (IPF) OS, a process whose executable file whose name is 20 bytes long is recognized by the first 14 bytes of its name. Therefore, if you want to monitor a process by its executable file name, specify a name that is no more than 14 bytes long or a name that includes a wildcard. If a monitoring process name contains a wildcard, APM monitors any processes that match the specified name up to the recognizable length.

To check the process names recognized by APM, execute the apmproclist command. For details about the apmproclist command, see apmproclist in 5. Commands.

• Process monitoring in Windows

  APM for Windows monitors processes by obtaining Windows performance data.

To Page Top

(2) Events issued by APM

APM issues events to SSO when the following incidents occur:

• Starting or stopping of APM

• Status change of a process or service (when a process starts or stops or when the operating status of a service changes)

• Termination of status check of a process or service

• Change of the monitoring interval

• Starting or stopping of monitoring

To Page Top

(3) Event delay

APM uses the UDP protocol to issue events. However, if APM is monitoring processes periodically, events may be issued in the wrong order or even lost. Particularly if APM issues several events to the same server in succession, it is more likely that events will be lost or shuffled. APM can therefore delay the issuance of the second and subsequent events by the specified number of seconds. Using this facility enables you to delay the process status events identified by the IDs 1000005 to 1000011 and the service status events identified by the IDs 1000016 to 1000023. The following figure shows overview of event delay.

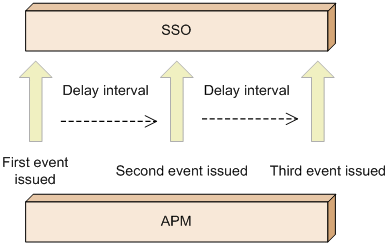

Figure 2‒76: FigureOverview of event delay

Set the event delay interval in the event-delay configuration file. For details, see 6.4.5 Event-delay configuration file (apmdelay.conf). When events are reported at the TCP, however, the event delay facility is invalid.

To Page Top

(4) TCP reporting of events

If any event is lost, you can select the TCP protocol to be used for event notification.
