1.7.6 Copy > Input Name [Alarm Table] or Copy > Input Name [Alarm Table] window

The Copy window is used to copy an alarm table or alarm. To display this window, in the Alarms window, in the method frame, choose Copy.

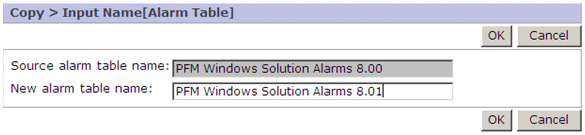

The following figure shows the Copy > Input Name [Alarm Table] window.

Figure 1‒123: Copy window

The following describes the displayed items:

OK button

Executes copying of the alarm table or alarm. If an alarm table or alarm with the same name already exists, an error results.

Cancel button

Cancels the operation and clears the information frame.

Source alarm table name or Source alarm name

Displays the source alarm table name or alarm name.

New alarm table name or New alarm name

Specify a new name for the alarm table or alarm.

For an alarm table name

Specify the alarm table name by using no more than 64 bytes of alphanumeric characters, the space, and the symbols % - ( ) _ . / @ [ ]. This name cannot begin with PFM (regardless of case). An alarm table cannot be copied to a different alarm folder.
For an alarm name

Specify the alarm name by using no more than 20 bytes of two-byte characters, single-byte alphanumeric characters, the single-byte symbols % - ( ) _ . / @ [ ], and spaces. An alarm cannot be copied to a different alarm table.
