1.5.5 Properties window

(1) Properties page

This page displays the report definitions selected in the navigation frame. The displayed information is the settings you specified in the window for creating a new report definition or the window for editing report definitions.

The following figure shows the Properties window (Properties page).

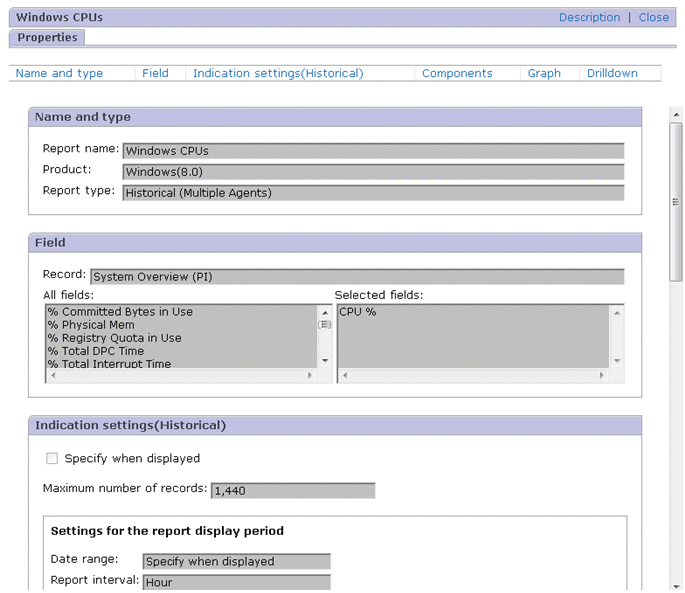

Figure 1‒95: Properties window (Properties page)

Clicking the link displayed at the top of the Properties page jumps to the area in which the applicable information is displayed. For details about the items displayed in each area, see 1.5.3 Windows for creating and editing report definitions.

The following describes the items displayed on this page.

Description

Displays the Description of Record and Fields window as a new window.

Close

Closes the Properties window.

Name and type

This area displays the information set in the New Report > Name and Type or Edit > Name and Type window for report definitions.

Field

This area displays the information set in the New Report > Field or Edit > Field window for report definitions.

Indication settings(Realtime) or Indication settings (Historical)

• For a realtime report:

• The Indication settings(Realtime) area displays the information set in the New Report > Indication settings(Realtime) or Edit > Indication settings(Realtime) window for report definitions.

• For a historical report:

  The Indication settings (Historical) area displays the information set in the New Report > Indication settings (Historical) or Edit > Indication settings (Historical) window for report definitions.

Components

This area displays the information set in the New Report > Indication Settings or Edit > Indication Settings window for report definitions.

Graph

This area displays the information set in the New Report > Graph or Edit > Graph window for report definitions.

Drilldown

This area displays the information set in the New Report > Drilldown or Edit > Drilldown window for report definitions.
