jssitemhistory (outputs Item history)
- Organization of this page
Description
This command outputs the Item history to a CSV file. Note that the command also outputs the history of the Items that were deleted from the windows and the Items that are placed in the Waiting to be deleted status by using the jssitemdeletion command. If you cancel the jssitemhistory command while it is being executed, the command outputs the history up to that point.
Format
jssitemhistory -o Item-history-file-name -r start-date-end-date [-b process-work-board-ID | -i related-item-serial-number] [-e] [-f]
Required execution permission
Administrator permissions
Storage folder
JP1/SS-path\bin\
Arguments
-o Item-history-file-name
Use 255 bytes or less to specify the name of the Item history file to which you want to output the Item history registered in JP1/Service Support. Count two bytes for full-width characters in the file name. You can use an absolute path or a relative path to specify the file name. If you use a relative path, make sure that it will have 255 bytes or less after it is converted to an absolute path. You cannot specify a character string beginning with a hyphen (-) for the file name.
-r start-date-end-date
Specifies a period in YYYY/MM/DD format. The history of the Items that were updated during that period will be output. Insert a hyphen (-) between the start date and the end date.
For start-date and end-date, you can specify dates in the range from 1970/01/02 to 2036/12/31. For start-date, specify a date earlier than end-date.
The start date and the end date are defined as follows.
- start-date
-
Outputs the history of the Items that were updated on and after this date. If you specify a non-existent date within the specifiable range, the system moves the specified date forward to the next closest existing date and outputs the history of the Items that were updated on and after that date. For example, if you specify 2006/04/31, the command outputs the history of the Items that were updated on May 1, 2006 and later.
- end-date
-
Outputs the history of the Items that were updated on and before this date. If you specify a non-existent date within the specifiable range, the system moves the specified date back to the closest previous existing date and outputs the history of the Items that were updated on and before that date. For example, if you specify 2006/06/31, the command outputs the history of the Items that were updated on June 30, 2006 and before.
-b process-work-board-ID
Use 64 or less half-width alphanumeric characters to specify the ID of the target process work board that you want to output the history of. If you specify neither the -b option nor the -i option, the command outputs the history of all the Items in JP1/Service Support.
-i related-item-serial-number
Use a decimal number consisting of 16 bytes to specify the related item serial number of the target Item if you want to output the history of a specific Item. If you do not specify both the -b option and the -i option, the command outputs the history of all the Items in the Item management database. For details about related item serial numbers, see 3.3.5 Displaying related Items.
-e
Includes the past data of user-customized elements in the Item history file. If you do not specify this option, the past data of user-customized elements is not output to the Item history file.
-f
Overwrites the Item history file.
Return values
Return value |
Meaning |
---|---|
0 |
Normal end |
1 |
Abnormal end |
Contents of an Item history file

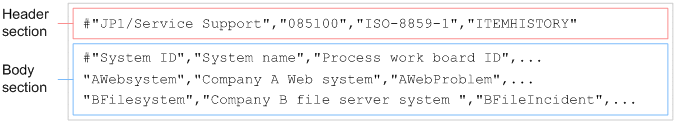

An Item history file contains data in the following format. If data is not registered for an element, two double quotation marks (") are shown for that element.
In the first line in the body section in an Item history file, fixed character strings are always shown regardless of how an Item form is customized.
The details about the contents of an Item history file are as follows.
- Header section
-
Output sequence
Header item
Value
1
Product name
JP1/Service Support
2
Version number of the Item history file
The version number of the file is indicated by 6 digits.
3
Character encoding used in the Item history file
Character encoding of output files.
4
Type of data that is output to the Item history file
-
When no extended element exists
ITEMHISTORY
-
When extended elements exist
ITEMHISTORYΔExtendedΔData
(Note: Δ indicates a half-width space.)
-
- Body section
-
Output sequence
Body item#1
Corresponding Item form element ID
1
System ID
--
2
System name
JIMSD_FORM_SYSTEM
3
Process work board ID
--
4
Process name#2
JIMSD_FORM_PROCESS
5
Related item serial number
--
6
Escalation number
--
7
Version number#3
--
8
Process work board serial number
--
9
Escalation system name
--
10
Escalation process name
--
11
Title
JIMSD_FORM_TITLE
12
Severity
JIMSD_FORM_SEVERITYCODE
13
Impact level
JIMSD_FORM_IMPACTCODE
14
Priority
JIMSD_FORM_PRIORITYCODE
15
Item type
JIMSD_FORM_ITEMCATEGORYCODE
16
Problem domain
JIMSD_FORM_ISSUECATEGORYCODE
17
Status
JIMSD_FORM_ITEMSTATUSID
18
Work status
JIMSD_FORM_SITUATION
19
Result
JIMSD_FORM_RESULTCODE
20
Update date and time
JIMSD_FORM_LASTUPDATE
21
Editor#4
--
22
Registrant
JIMSD_FORM_REGISTRANT
23
Registrant ID
--
24
Occurrence date and time
JIMSD_FORM_ACCRUALDATE
25
Registration date and time
JIMSD_FORM_REGISTDATE
26
Start date and time
JIMSD_FORM_STARTDATE
27
Person in charge type
--
28
Person in charge
JIMSD_FORM_ASSIGNED
29
Person in charge ID
--
30
Deadline
JIMSD_FORM_DEADLINE
31
Answerer type
--
32
Answerer
JIMSD_FORM_RESPONDENT
33
Answerer ID
--
34
End date and time
JIMSD_FORM_COMPDATE
35
Customer name
JIMSD_FORM_CUSTOMERNAME
36
Inquirer
JIMSD_FORM_INQUIRYNAME
37
Cost (planned)
JIMSD_FORM_ESTIMATEDCOST
38
Cost (actual)
JIMSD_FORM_ACTUALCOST
39
Impact service
JIMSD_FORM_EFFECTSERVICE
40
Overview
JIMSD_FORM_SUMMARY
41
Occurred type
JIMSD_FORM_PHENOMENONCODE
42
Cause
JIMSD_FORM_CAUSECODE
43
Fundamental cause
JIMSD_FORM_ROOTCAUSE
44
Workaround type
JIMSD_FORM_AVOIDANCECODE
45
Workaround
JIMSD_FORM_AVOIDANCE
46
Solution category
JIMSD_FORM_SOLUTIONCODE
47
Solution
JIMSD_FORM_SOLUTION
48
Problem component and version
JIMSD_FORM_FAILURELOCATION
49
How to avoid the problem in the future
JIMSD_FORM_MEASURES
50
Schedule and main steps
JIMSD_FORM_SCHEDULE
51
Impact assessment for change
JIMSD_FORM_IMPACTEVAL
52
Scale of change
JIMSD_FORM_CHANGESCALECODE
53
Release type
JIMSD_FORM_RELEASETYPECODE
54
Discussions result
JIMSD_FORM_DELIBERATIONRST
55
Free memo column
JIMSD_FORM_FREEDESCRIPTION
56
Reason for severity
JIMSD_FORM_SEVERITYREASON
57
Reason for impact level
JIMSD_FORM_IMPACTREASON
58
Reason for priority
JIMSD_FORM_PRIORITYREASON
59
Product name
JIMSD_FORM_JP1PRODUCTNAME
60
Jobnet name
JIMSD_FORM_JP1JOBNETNAME
61
Job name
JIMSD_FORM_JP1JOBNAME
62
SNMP source
JIMSD_FORM_JP1SNMPSRC
63
Monitored node name
JIMSD_FORM_JP1NODENAME
64
Alarm name
JIMSD_FORM_JP1ALARMNAME
65
Serial number
JIMSD_FORM_IMEVENTNO
66
JP1/IM-M host name
JIMSD_FORM_IMHOSTNAME
67
Hardware information
JIMSD_FORM_LINKAIM
68
Related item ID
--
69
Related information name
JIMSD_FORM_LINKURL
70
Extended text 1
JIMSD_FORM_USERTEXT01
71
Extended text 2
JIMSD_FORM_USERTEXT02
72
Extended text 3
JIMSD_FORM_USERTEXT03
73
Extended text 4
JIMSD_FORM_USERTEXT04
74
Extended text 5
JIMSD_FORM_USERTEXT05
75
Extended text 6
JIMSD_FORM_USERTEXT06
76
Extended text 7
JIMSD_FORM_USERTEXT07
77
Extended text 8
JIMSD_FORM_USERTEXT08
78
Extended text 9
JIMSD_FORM_USERTEXT09
79
Extended text 10
JIMSD_FORM_USERTEXT10
80
Extended text 11
JIMSD_FORM_USERTEXT11
81
Extended text 12
JIMSD_FORM_USERTEXT12
82
Extended text 13
JIMSD_FORM_USERTEXT13
83
Extended text 14
JIMSD_FORM_USERTEXT14
84
Extended text 15
JIMSD_FORM_USERTEXT15
85
Extended text 16
JIMSD_FORM_USERTEXT16
86
Extended text 17
JIMSD_FORM_USERTEXT17
87
Extended text 18
JIMSD_FORM_USERTEXT18
88
Extended text 19
JIMSD_FORM_USERTEXT19
89
Extended text 20
JIMSD_FORM_USERTEXT20
90
Extended time 1
JIMSD_FORM_USERTIME01
91
Extended time 2
JIMSD_FORM_USERTIME02
92
Extended time 3
JIMSD_FORM_USERTIME03
93
Extended time 4
JIMSD_FORM_USERTIME04
94
Extended time 5
JIMSD_FORM_USERTIME05
95
Extended code 1
JIMSD_FORM_USERCODE01
96
Extended code 2
JIMSD_FORM_USERCODE02
97
Extended code 3
JIMSD_FORM_USERCODE03
98
Extended code 4
JIMSD_FORM_USERCODE04
99
Extended code 5
JIMSD_FORM_USERCODE05
100
Extended numerical data 1
JIMSD_FORM_USERINT01
101
Extended numerical data 2
JIMSD_FORM_USERINT02
102
Extended numerical data 3
JIMSD_FORM_USERINT03
103
Extended numerical data 4
JIMSD_FORM_USERINT04
104
Extended numerical data 5
JIMSD_FORM_USERINT05
105
Extended user information type 1
--
106
Extended user information 1
JIMSD_FORM_USEREXTTYPE01
107
Extended user information ID 1
--
108
Extended user information type 2
--
109
Extended user information 2
JIMSD_FORM_USEREXTTYPE02
110
Extended user information ID 2
--
111
Extended user information type 3
--
112
Extended user information 3
JIMSD_FORM_USEREXTTYPE03
113
Extended user information ID 3
--
114
Extended user information type 4
--
115
Extended user information 4
JIMSD_FORM_USEREXTTYPE04
116
Extended user information ID 4
--
117
Extended user information type 5
--
118
Extended user information 5
JIMSD_FORM_USEREXTTYPE05
119
Extended user information ID 5
--
120
Extended user link 1#5
JIMSD_FORM_REFINFO01
121
Extended user link 2#5
JIMSD_FORM_REFINFO02
122
Extended user link 3#5
JIMSD_FORM_REFINFO03
123
Extended user link 4#5
JIMSD_FORM_REFINFO04
124
Extended user link 5#5
JIMSD_FORM_REFINFO05
Prerequisites for executing the command
-
For details about which services need to be active or inactive when this command is executed, see Status of services when commands are executed in Chapter 12. Commands.
-
Do not execute the following commands at the same time as the jssitemhistory command. If you do, the jssitemhistory command might fail.
-
jssformdef command
-
jssdelrec command
-
jssdbinit.bat command
-
jssdbrorg.bat command
-
jssdbreclaim.bat command
-
jssdbbackup.bat command
-
jssdbrecovery.bat command
-
jssitemstore command
-
jssitemstoredbexpand.bat command
-
jssitemstoredbsetup.bat command
-
jssrefaclsetup command
-
jssstoreitemdel.bat command
-
-
If you want to execute multiple jssitemhistory commands with the -f option, specify a different Item history file name in the -o option for each command. If you specify the same file name for multiple jssitemhistory commands, the contents of the Item history file might become incomplete.
Remarks
-
If you cancel the jssitemhistory command by using Ctrl+C while the command is being executed, the Item history might not be output. For this reason, do not cancel the command during execution by using Ctrl+C. If you happen to do so, wait for a while and then re-execute the command.
-
If the Item history that is output to the file does not contain character strings corresponding to the values of selection codes, the values of selection codes are output to the file without change.
-
In the Item history file, date and time data before 1970/01/01 23:59:59 and after 2037/01/01 00:00:00 might not be correct.
-
One jssitemhistory command can output a maximum of 65,530 past records of Items. If you want to output history of 65,531 or more Items, specify the -b option or the -r option in the jssitemhistory command to narrow down the target range, and execute the jssitemhistory command multiple times.
-
If you attempt to output large amount of Item history to an Item history file, the work area in the Item management database might run short or the log files of the Item management database might run short. If that occurs, a KNAB24002-E error message with detailed code -722 or -1703 will appear. Reduce the number of elements of Items in the Item information entries file, and then re-execute the jssitemhistory command. The guideline for the total number of elements of Items you can enter in an Item information entries file is as follows depending on the size of the Item management database.
-
For the size-S database: Approximately 2,000 element
-
For the size-M database: Approximately 5,000 elements
-
For the size-L database: Approximately 5,000 elements
-
For the size-LL database: Approximately 5,000 elements
-
For the size-XL database: Approximately 5,000 elements
-
-
If you use the jssitemhistory command to output Item information that includes deleted users, the IDs of the deleted users will not be output.
-
If you use the jssitemhistory command to output a large amount of Item information, the database work space might be insufficient, and the message "KNAB24002-E: An error occurred in the database of JP1/Service Support. (-713)" might be output. If this occurs, adjust the start date and end date to narrow down the Item information, and then re-execute the command.
-
If the information to be output includes characters that are mapped with UTF-8 but that are not mapped with the character set used in the operating environment, those characters are replaced with question marks (?) in the CSV file output.
Example
The following example shows how to output the history of the Items in the process work board with process work board ID HQsystem to a CSV file (c:\Item\Itemhistory.csv). The Items are limited to those that were updated between April 1, 2007 and June 30, 2007.
jssitemhistory -o c:\Item\Itemhistory.csv -r 2007/04/01-2007/06/30 -b HQsystem
