Hitachi

JP1 Version 12 JP1/Service Support Configuration and Administration Guide


9.4.2 Editing target system information

To edit information about a target system:

  1. From the menu in the main window (Item list), select Option and then Target system management.

    The Target system management window appears.

  2. Select the target system you want to edit.

    You can select a target system by clicking the system ID or system name. Only one target system can be selected. The following figure shows the Target system management window with a target system selected.

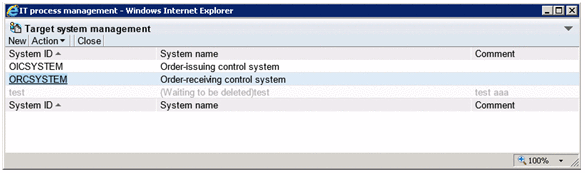

    Figure 9‒13: Target system management window (with target system selected)

    [Figure]

    You can change the order of target information in the Target system management window by clicking the column header of the System ID or System name column to sort the list by that column. By default, the list is sorted by the System ID column. An icon appears in the column header indicating whether the column is sorted in ascending order (▲) or descending order (▼).

  3. From the menu, select Action and then Edit the target system.

    The Edit the target system window appears. This window is shown below.

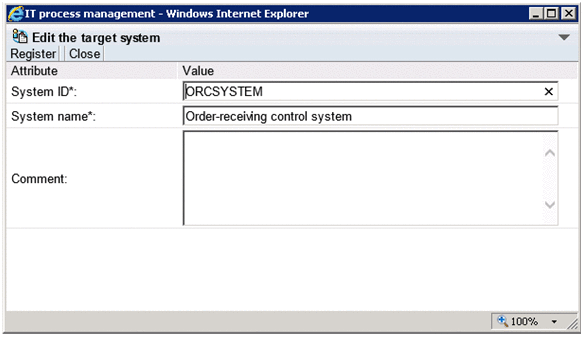

    Figure 9‒14: Edit the target system window

    [Figure]

  4. Edit the target system information.

    Change the System ID and System name as needed. Specify from 1 to 64 half-width alphanumeric characters in the System ID field. In the System name field, specify from 1 to 128 single byte alphanumeric characters or approximately 40 full-width characters. In the Comment field, specify a maximum of 1,024 half-width alphanumeric characters or approximately 340 full-width characters.

  5. From the menu, select Register.

    The target system information is edited and you are returned to the Target system management window.
