9.4.1 Adding target systems

To add a target system:

1. From the menu in the main window (Item list), select Option and then Target system management.

   The Target system management window appears. This window is shown below.

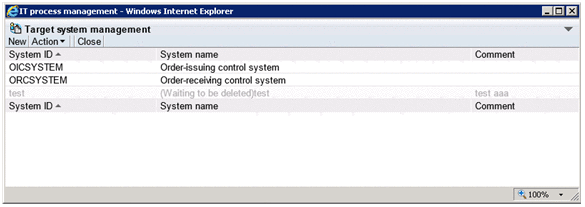

   Figure 9‒11: Target system management window

   You can change the order of target system information in the Target system management window by clicking the System ID or System name column header to sort the list by that column. By default, the list is sorted by the System ID column. An icon appears in the column header indicating whether the column is sorted in ascending order (▲) or descending order (▼).

2. From the menu, select New.

   The Create the target system window appears. This window is shown below.

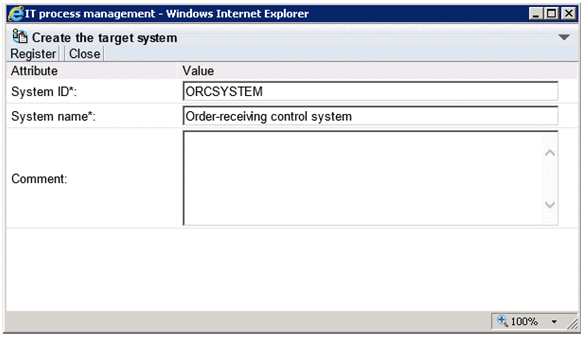

   Figure 9‒12: Create the target system window

3. Enter information about the target system.

   You must enter information in the System ID and System name fields. Specify from 1 to 64 half-width alphanumeric characters in the System ID field. In the System name field, you can enter from 1 to 128 half-width alphanumeric characters or a maximum of approximately 40 full-width characters. In the Comment field, you can enter a maximum of 1,024 half-width alphanumeric characters or approximately 340 full-width characters.

4. From the menu, select Register.

   The target system is added and you are returned to the Target system management window.
