5.15.1 Login authentication using the Item management database

(1) When not linking with the specific JP1 product

Login authentication uses the user information managed by the Item management database in JP1/Service Support.

To Page Top

(2) When linking with the specific JP1 product

Login authentication uses the user information managed by the Item management database in JP1/Service Support. In addition to authentication of the Item management database, the JP1/Base authentication server is used for the authentication of users who link with the specific JP1 product. By using the JP1/Base authentication server, users can launch the window of the specific JP1 product from JP1/Service Support, or launch the window of JP1/Service Support from the specific JP1 product, without the need of login authentication (Single Sign-On). Note that the user IDs and passwords of users who use linkage are also managed on the JP1/Base authentication server. Therefore, their user IDs and passwords must be registered and maintained on that server.

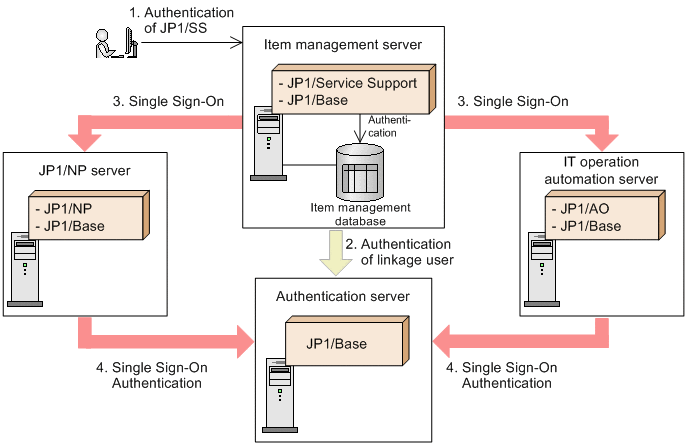

The following figure shows an example of login authentication using the Item management database when linking with the specific JP1 product.

Figure 5‒13: Example of login authentication using the Item management database (when linking with the specific JP1 product)
