5.13.1 Operation example of an Item storage database

This operation example of an Item storage database makes the following assumptions regarding the use of the Item storage database:

• Periodical use

  Items are stored in the Item storage database on a regular basis while the Item management database is not yet full.

• Temporary use

  Items are stored in the Item storage database when the Item management database becomes full.

Before you can store Items in the Item storage database, you need to set up the database and prepare the disk. For this reason, we recommend that you use the periodical use pattern with proper planning. The following figure shows an example of periodical use of the Item storage database:

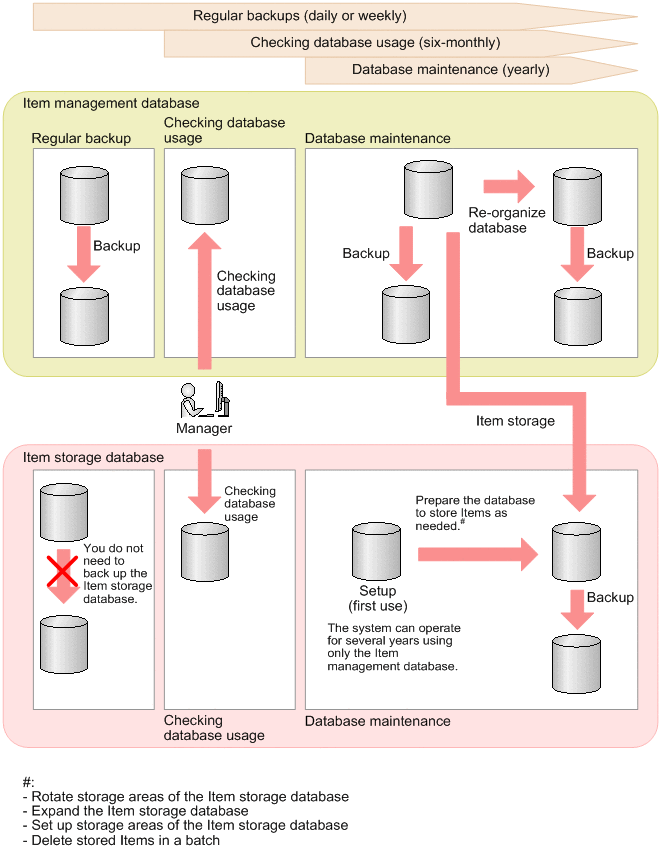

Figure 5‒11: Periodical use example of Item storage database
