4.9 Linkage with the Web GUI of JP1/AJS3 - Web Console
If you use JP1/IM - Manager to register JP1 events from Hitachi's job management product JP1/AJS3 as Item information in JP1/Service Support, you can specify a URL that links to the Web GUI of JP1/AJS3 - Web Console in the related information for an Item. In this way, clicking the URL in the related information displays the Monitor window for the job or jobnet corresponding to the JP1 event that occurred.
Note that linkage with the Web GUI of JP1/AJS3 - Web Console requires the JP1/Base authentication functionality. Also, the same authentication server must be used for JP1/Service Support and JP1/AJS3 - Web Console. If different authentication servers are used, JP1/Service Support cannot be linked with the Web GUI of JP1/AJS3 - Web Console. For details about using the JP1/Base user authentication functionality, see 4.13.2 Linkage with JP1/Base (for authentication).

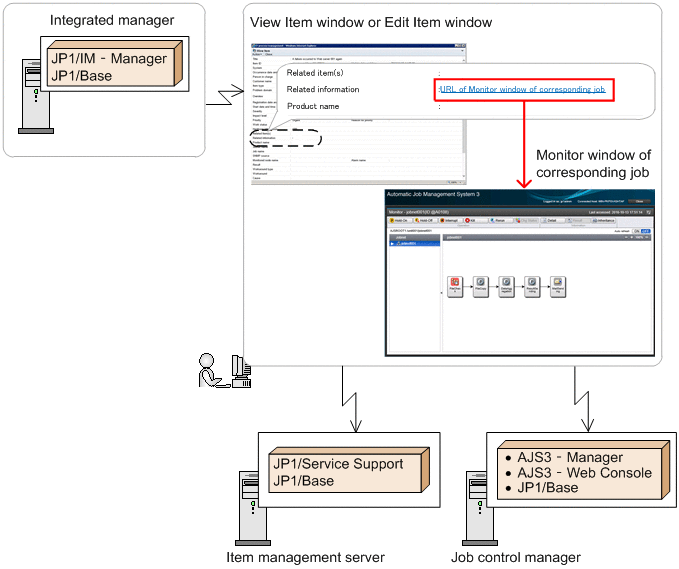

The following figure shows an overview of linkage with the Web GUI of JP1/AJS3 - Web Console.
|
|
![[Figure]](GRAPHICS/ZU030360.GIF)
You can display the JP1/AJS3 - Web Console Monitor window from the View Item window of JP1/Service Support and from under Related information or Related link in the Item preview area of the main window (Item list) of JP1/Service Support.
