2.2.1 Basic system configuration
The JP1/Service Support environment can consist of just a Web browser and a server. The server runs the JP1/Service Support product itself, and the operator uses the Web browser to log in and display the user interface.

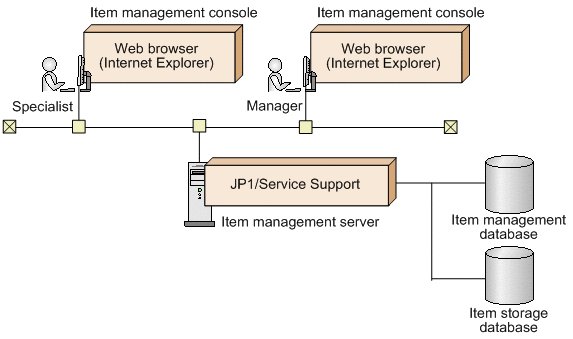

The following figure shows an example of a basic system configuration for JP1/Service Support.
|
|
![[Figure]](GRAPHICS/ZU011510.GIF)
The following describes the programs required on each computer and server.
- Item management console
-
A computer from which a JP1/Service Support user logs in to JP1/Service Support from a Web browser to view and work with Items. Internet Explorer must be installed on the Item management console.
- Item management server
-
A server where Items are managed. JP1/Service Support must be installed on the Item management server. Note that an Item storage database must be set up as needed.
