5.10 Add Profile window
The Add Profile window is used to add profiles for log file trapping or for remote-monitoring log file trapping. These profiles can be added only when the version of JP1/Base on the agent is 09-10 or later.

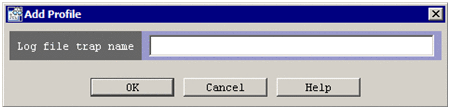

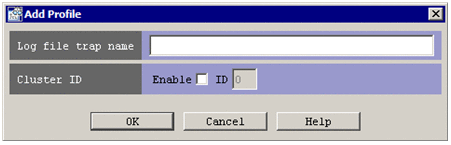

The following figures show examples of the Add Profile window that is displayed.
|
|
![[Figure]](GRAPHICS/CF041700.GIF)
|
|
![[Figure]](GRAPHICS/CF041710.GIF)
- Log file trap name
-
Use this text box to enter the name under which log file traps and remote monitoring log file traps will trap log files.
A character string having from 1 through 30 bytes can be entered. The character string can use alphanumeric characters, hyphens (-), and underscores (_).
The first character must be an alphanumeric character. Alphabetic characters are not case sensitive.
For details on log file trap names, see the following manuals:
-
For log trap files, see the description of the jevlogstart command and the log-file trap startup definition file in the JP1/Base User's Guide.
-
For remote monitoring log file traps, see jcfallogstart in 1.Commands in the manual JP1/Integrated Management 2 - Manager Command, Definition File and API Reference.
-
- Cluster ID
-
Use this check box to determine whether to specify a cluster ID.
For details on cluster IDs, see the description of the log-file trap startup definition file in the JP1/Base User's Guide.
- Enable
-
To specify a cluster ID, select the Enable check box.
By default, this check box is cleared.
- ID
-
Enter a cluster ID in this text box. A character string having no more than two bytes can be entered. You can specify a value in the range from 0 to 99. The default is 0.
This text box is enabled only when the Enable check box is selected.
