Hitachi

JP1 Version 12 JP1/Integrated Management 2 - Manager GUI Reference


5.11 Login User List window

The Login User List window is used to display the users who are logged in to IM Configuration Management - View. If another user has exclusive rights, the exclusive editing status of that user is displayed. A user with IM Configuration Management administrator role permissions can forcibly release the exclusive rights of another user.

The following figure shows an example of the Login User List window.

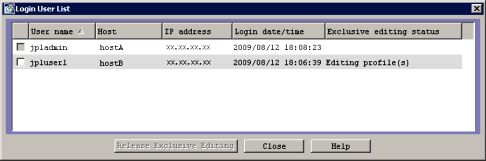

Figure 5‒27: Login User List window

[Figure]

The following describes the items displayed in the Login User List window.

Table 5‒36: Items displayed in the Login User List window

Item

Displayed information

User name

The name of a user who is logged in to IM Configuration Management - View.

Example: jp1admin

Host

The name of the host the user is logged in to.

Example: HostA

IP address

The IP address of the host the user is logged in to.

Example: 10.208.40.40

Login date/time

The date and time that the user logged in.

Example: 2008/01/01 12:24:31

Exclusive editing status

One of the following type of exclusive editing rights that a user can have:

  • Editing profile(s)

  • Editing IM configuration

  • Editing host properties

  • Editing business group

Release Exclusive Editing button

When this button is clicked, the exclusive editing rights of the user selected in the Login User List window are released. Note that this operation can be executed only by a user with IM Configuration Management administrator permissions. Note that if the exclusive editing rights are released, the data being edited by the released user is discarded.

Help

Displays Help.
