4.13 Common Condition Settings window

The Common Condition Settings window is used to add, delete, edit, or check the status-change conditions (common conditions) of a monitoring object.

This window is displayed when the user chooses Options from the menu bar of the Monitoring Tree window and then Common Condition Settings or when the user clicks the Set Common Condition button in the Status-Change Condition Settings window.

The following figure shows an example of the Common Condition Settings window.

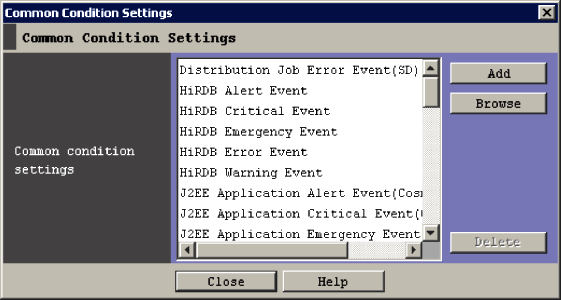

Figure 4‒20: Common Condition Settings window

The following describes the items displayed in the Common Condition Settings window.

Common Condition Settings

This area lists the common conditions for changing the application status of the monitoring object.

If the Common Condition Settings window is opened from the Monitoring Tree window during monitoring of system operation, the Common Condition Settings window displays the common conditions saved in JP1/IM - Manager.

For example, the common conditions saved in JP1/IM - Manager are displayed when the user chooses Options from the menu bar of the Monitoring Tree window and then Common Condition Settings.

If the Common Condition Settings window is opened from the Monitoring Tree (Editing) window, the displayed common conditions change, depending on the condition, as described below:

When a new monitoring tree is being created, the default common conditions saved in JP1/IM - View are displayed.
When a CSV file saved on the local computer is loaded, the common conditions saved in the file are displayed.
After Acquire Tree from Server, Auto-generate Tree, or Acquire Latest Definition has been executed, the common conditions saved in JP1/IM - Manager are displayed.

Example 1: The user opens Monitoring Tree (Editing) window, and immediately chooses Options from the menu bar and then Common Condition Settings. In this case, the common conditions saved in JP1/IM - View are displayed. (Condition 1 above)

Example 2: The user chooses File from the menu bar of the Monitoring Tree (Editing) window, and then Open Tree to open a local CSV file. The user then opens the Common Condition Settings window. In this case, the common conditions saved in the file are displayed. (Condition 2 above)

Example 3: The user chooses Acquire Latest Definition from the Options menu in the menu bar of the Monitoring Tree (Editing) window to acquire the latest definition from JP1/IM - Manager. The user then opens the Common Condition Settings window. In this case, the common conditions saved in JP1/IM - Manager are displayed. (Condition 3 above)

Add

Clicking this button displays the Common Condition Detailed Settings window, where a common condition can be added.

This button cannot be used when 191 editable common conditions have already been registered.

Browse or Edit

If the selected common condition is a system definition, Browse is displayed. If the selected common condition is a user definition, Edit is displayed.

Clicking the Edit button displays the Common Condition Detailed Settings window, where the detailed settings of the selected common condition can be edited. If Browse is displayed, the selected common condition cannot be edited.

Delete

Clicking this button deletes the selected common condition.
