5.1.2 Overwrite installation (in Windows)

To perform an overwrite installation of JP1/DH - Server:

1. Log in to the machine in which you want to perform an overwrite installation of JP1/DH - Server as a built-in Administrator user.

2. Exit all the Windows programs.

   If another application is using a file that is part of JP1/DH - Server, the File in Use dialog box might appear. In this case, click the Cancel button to stop the overwrite installation, exit all the Windows programs, and then perform the overwrite installation again.

3. Stop JP1/DH - Server.

   From Windows Administrative Tools, open the Services window, and then select Stop the service for the services in the following order:

   • JP1_DH_WEB SVR (if the JP1/DH Web server is used)

   • JP1_DH_WEB CONTAINER

   • JP1_DH_DATABASE_SVR

4. Start Hitachi Integrated Installer.

   Insert the Hitachi Integrated Installer medium (CD-ROM) including JP1/DH - Server in the drive, and then start Hitachi Integrated Installer.

5. Start the JP1/DH - Server installer.

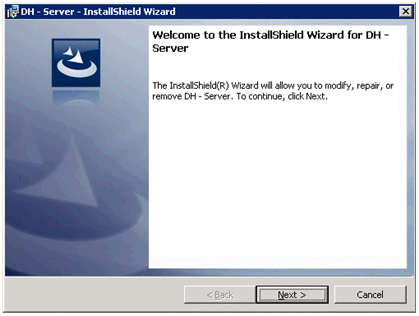

   In Hitachi Integrated Installer, select JP1/Data Highway - Server, and then click the Install button. The Welcome to JP1/DH - Server Setup window appears.

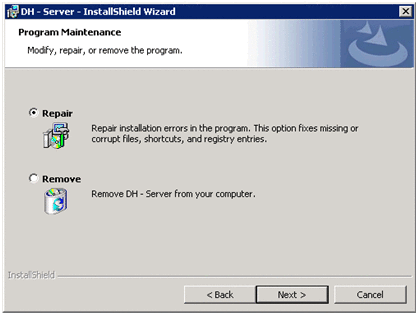

6. Click the Next button. The Program Maintenance window appears.

7. Select Repair.

   In the Program Maintenance window, select Repair.

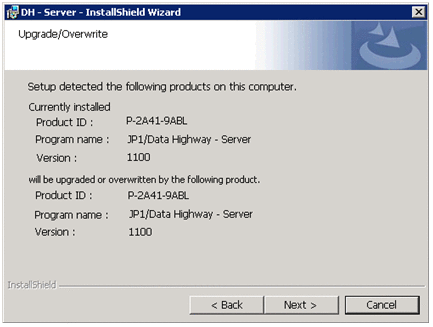

8. Click the Next button. The Upgrade/Overwrite window appears.

9. Check the details of the installed version before starting an overwrite installation.

   The Upgrade/Overwrite window appears. Check the details of the installed version.

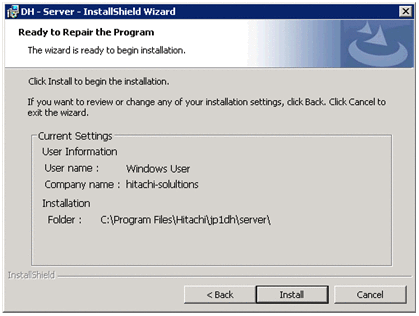

10. Click the Next button. The Ready to Repair Program window appears.

11. Check the entered data before starting an overwrite installation.

    In the Ready to Repair Program window, make sure that the entered information is correct.

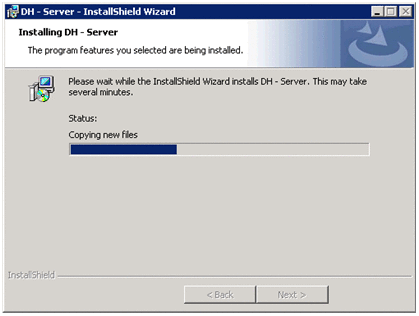

12. Start an overwrite installation of JP1/DH - Server.

    In the Ready to Repair Program window, click the Install button. The overwrite installation of JP1/DH - Server starts.



13. Finish the overwrite installation of JP1/DH - Server.

    When the overwrite installation is completed, the InstallShield Wizard Complete window appears. Click the Finish button to finish the overwrite installation of JP1/DH - Server.



14. Exit Hitachi Integrated Installer.

    Click the Finish button to exit Hitachi Integrated Installer.

    Important

    • After the overwrite installation of JP1/DH - Server is completed, start the database service (JP1_DH_DATABASE_SVR), and then set up the JP1/DH - Server environment. For details about how to set up the environment, see 5.3 Setting up the JP1/DH Web application server environment.

    • If the installation ends due to an error, the status of the location to which JP1/DH - Server is installed is invalid. In this case, eliminate the cause of that error, start the installer again, make sure that the installer ends normally, and then complete the installation.

    • The database-related passwords are reset to p@ssw0rd. Specify them again as needed. For details, see 4.1.3 Notes on overwrite installation and upgrade installation.
