JP1 Version 12 JP1/Data Highway - Server Configuration and Administration Guide


5.1.1 New installation (in Windows)

To newly install JP1/DH - Server:

  1. Log in to the machine on which you want to newly install JP1/DH - Server as a built-in Administrator user.

  2. Exit all the Windows programs. (Recommended)

  3. Start Hitachi Integrated Installer.

    Insert the Hitachi Integrated Installer medium (CD-ROM) including JP1/DH - Server in the drive, and then start Hitachi Integrated Installer.

  4. Start the JP1/DH - Server installer.

    In Hitachi Integrated Installer, select JP1/Data Highway - Server, and then click the Install button. The Welcome to JP1/DH - Server Setup window appears.

    [Figure]

  5. Click the Next button. The User Information window appears.

  6. Enter user information.

    Enter values for User name and Company name.

    • User name

      Specify a user name using no more than 50 characters. Any character can be specified. The user name registered in the system is displayed by default.

    • Company name

      Specify a company name using no more than 80 characters. Any character can be specified. The company name registered in the system is displayed by default.

      [Figure]

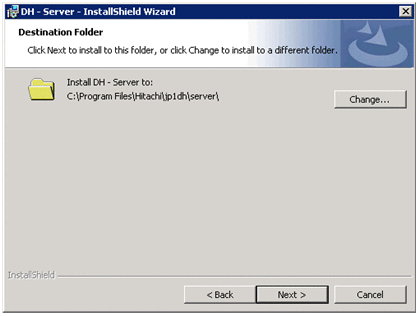

  7. Click the Next button. The Installation Folder window appears.

  8. Specify the installation folder.

    To change the installation location, in the dialog box displayed by clicking the Change... button, select the installation folder#.

    [Figure]

    #

    A maximum of 44 characters can be specified for the length of the path of the installation folder. You cannot specify a folder whose name contains a single-byte hash mark (#) or double-byte characters. Do not install JP1/DH - Server under the root of the system drive or under the system folder.

  9. Click the Next button. The Ready to Install window appears.

  10. Before starting installation, check the entered data.

    In the Ready to Install window, make sure that the entered information is correct.

    [Figure]

  11. Start a new installation of JP1/DH - Server.

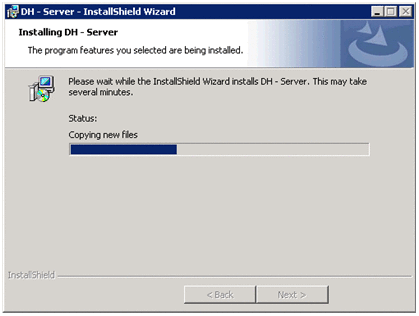

    In the Ready to Install window, click the Install button. The installation of JP1/DH - Server starts.

    [Figure]

  12. Finish the new installation of JP1/DH - Server.

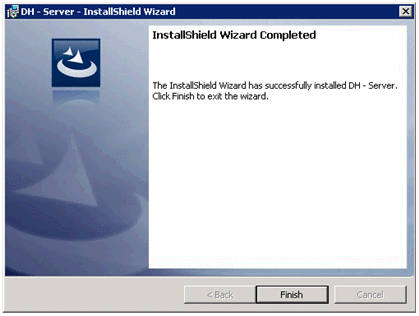

    When the installation is completed, the InstallShield Wizard Complete window appears. Click the Finish button to finish the new installation of JP1/DH - Server.

    [Figure]

  13. Exit Hitachi Integrated Installer.

    Click the Finish button to exit Hitachi Integrated Installer.

    Important
    • After the new installation of JP1/DH - Server is completed, set up the JP1/DH - Server environment. For details about how to set up the environment, see 5.3 Setting up the JP1/DH Web application server environment.

    • If the installation ends due to an error, the status of the location to which JP1/DH - Server is installed is invalid. In this case, eliminate the cause of that error, start the installer again, make sure that the installer ends normally, and then complete the installation.
