2.9.5 Creating delivery rules for groups that combine delivery policies and approval routes (domain-content manager)

Delivery rules define which delivery policies and approval routes that were created beforehand are applied to which groups.

In this example, Policy1 and Approval Route 1 are applied to the group Design.

Prerequisites

• These tasks are performed by the domain-content manager.

• The domain-content manager must have already created the delivery policies and approval routes.

• The groups to which delivery policies are to be applied must be created in JP1/DH - Server.

Procedure

1. Log in to JP1/DH - Server.

   Log in by using the ID (suzuki@hitachig) and password of the domain-content manager.

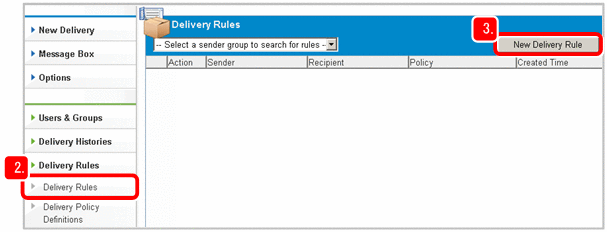

2. In the sidebar area, select Delivery Rules and Delivery Rules.

   The Delivery Rules window appears in the content area.



3. Click the New Delivery Rule button.

   The New Delivery Rule window appears.

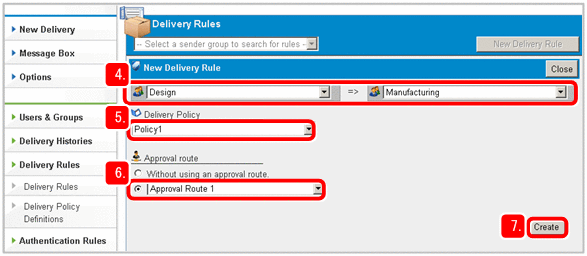

4. From the drop-down list box on the left of the arrow (=>), select Design. From the drop-down list box on the right, select Manufacturing.

   The group on the left is the sender. The group on the right is the receiver.



5. From the Delivery Policy drop-down list box, select Policy1.

   Policy1 is applied when data is delivered from the group Design.

6. In Approval route, select the lower radio button. From the drop-down list box, select Approval Route 1.

   Delivery of data from the Design group will require the approval of Sato Daisuke who is assigned to Approval Route 1.

7. Click the Create button.

   The rule of applying Policy1 and Approval Route 1 when data is delivered from the group Design to the group Manufacturing is created.



   Tip

   If multiple delivery rules are registered, the delivery rule at the top of the list in the Delivery Rules window is applied first. If you want to preferentially apply a delivery rule, click the icon () for the delivery rule and then select Up to move it to the top of the list.

Postrequisites

Notify the users who will use JP1/DH - Server to deliver data, of any necessary information.

Related topics

• 2.9.3 Determining the items related to data delivery and creating delivery policies (domain-content manager)

• 2.9.4 Creating approval routes (domain-content manager)

• 2.10 Notifying general users of information required to use JP1/DH server (domain-content manager)
