6.10.1 Outputting definitions to Microsoft Excel in jobnet flow format

To output jobnet definitions to Microsoft Excel in jobnet flow format:

1. In the unit tree in the Job Operation Document Output window, select the jobnet whose definition information you want to print.

2. From the File menu, choose Jobnet Flow Output.

   The Jobnet Flow Output window appears.

   Figure 6‒42: Jobnet Flow Output window

3. Click Start.

   The definition information for the jobnet appears in Microsoft Excel.

   Figure 6‒43: Jobnet definition in Microsoft Excel (When the data layout has one column)

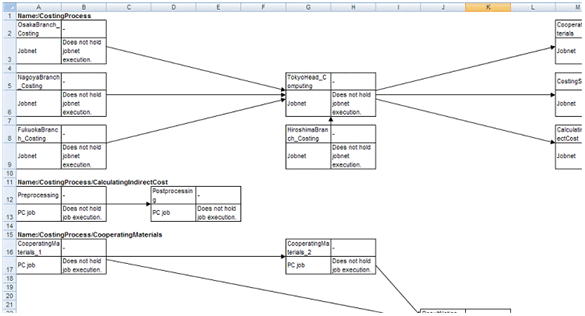

   Figure 6‒44: Microsoft Excel display example (When the data layout has two columns)

Use the print functionality of Microsoft Excel to print the jobnet definition.
