Hitachi

JP1 Version 12 Job Management: Getting Started (Job Scheduler)


1.7 Logging in to JP1/AJS3 - Manager from JP1/AJS3 - View

To use JP1/AJS3 - View to define and execute jobs, you must log in to JP1/AJS3 - Manager. This section describes how to use JP1/AJS3 - View to log in to JP1/AJS3 - Manager.

Procedure

  1. Log in to the JP1/AJS3 - View host.

  2. From the Start menu of Windows, select All Programs, JP1_Automatic Job Management System 3 - View, and then Job Management System.

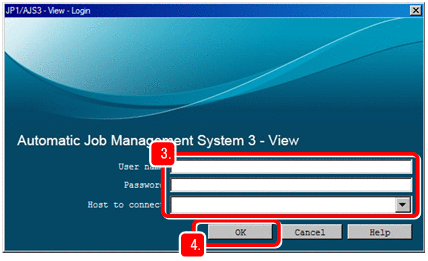

    The Login window appears.

  3. Enter information about the JP1 user who logs in.

    [Figure]

    User name

    Enter the name of a JP1 user registered in the authentication server.

    Password

    Enter the password of a JP1 user registered in the authentication server.

    Host to connect

    Specify the name of a manager host you want to connect.

  4. Click the OK button.

Result

The JP1/AJS3 - View window (Main window) appears.

[Figure]

Important

If you cannot log in, the probable reasons are as follows:

  • Manager host services are not running.

    Required services might not be running on the manager host. Make sure that the services are running. If any service is not running, start it.

  • User mapping is not set correctly.

    User mapping might not have been correctly set on the manager host. Set user mapping correctly.

Postrequisites

Start system operation.
