1.3.4 Setting up the prerequisite product

Register JP1 users (accounts reserved for JP1 only) in JP1/Base, and then set operation permissions for the JP1 users. Then, associate the JP1 users with OS users so that the JP1 users can access OS resources.

Setting up JP1/Base on the manager host consists of the following four steps:

Setting up an authentication server:

An authentication server manages access permissions of JP1 users. Set up the server on which JP1/Base is installed as an authentication server.

Registering JP1 users in the authentication server:

Setting operation permissions for JP1 users:

Set permissions (JP1 permission levels) that allow JP1 users to define and execute applications.

Setting user mapping:

User mapping is an operation to associate JP1 users with OS users on the host on which jobs are executed.

To execute a job in JP1/AJS3, a JP1 user accesses OS resources such as executable files by using permissions of an OS user associated with the JP1 user, and then performs processing. Therefore, the JP1 user must be associated with an OS user on the host on which the job is executed.

The following figure shows an overview of user mapping.

Figure 1‒2: User mapping

In this figure, the job executed by the JP1 user user01 on the JP1/AJS3 - View host is executed by the OS user MAN_OSuser on the manager host. If the job is transferred to the agent host, the job is executed by the OS user AGT_OSuser on the agent host.

Tip

If you performed the automatic setup processing when installing JP1/Base, the information shown below is automatically specified as initial settings. If you perform operations using the users in the initial settings, you do not need to set up JP1/Base.

No.	Setting item		Initial settings
1	Setting up an authentication server	Authentication server name	Local host name
2	Registering JP1 users in the authentication server	JP1 user name	`jp1admin`
3	Registering JP1 users in the authentication server	Password	`jp1admin`
4	Setting JP1 user operating permissions	JP1 resource group	`*` (asterisk)
5	Setting JP1 user operating permissions	Granted permissions	All administration permissions
6	Setting user mapping	JP1 user name to be mapped	`jp1admin`
7		OS user to be mapped	OS user entered in the window for entering the OS user name and password
8		Server host name	`*` (asterisk)

Related topics

1.3.4(1) Setting up an authentication server
1.3.4(2) Registering JP1 users in the authentication server
1.3.4(3) Setting operation permissions for JP1 users
1.3.4(4) Setting user mapping

Organization of this subsection

(1) Setting up an authentication server
(2) Registering JP1 users in the authentication server
(3) Setting operation permissions for JP1 users
(4) Setting user mapping

(1) Setting up an authentication server

Set the name of the host used as the authentication server in JP1/Base.

Prerequisites

Procedure

From the Start menu of Windows, select Programs, JP1_Base, and then setup.

The JP1/Base Environment Settings dialog box appears.

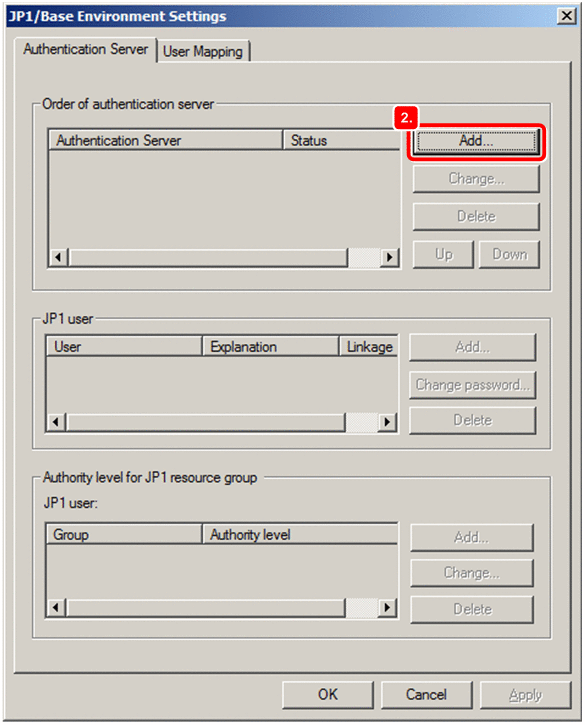

In the Authentication Server tab, in Order of authentication server, click the Add button.

The Authentication Server dialog box appears.
In Authentication server, enter the host name of the authentication server.
Click the OK button.

The Authentication Server dialog box closes.

In the JP1/Base Environment Settings dialog box, in Order of authentication server, the host name of the manager host appears.
Click the Apply button.

Result

The manager host is set as the authentication server.

Postrequisites

Related topics

1.3.4(2) Registering JP1 users in the authentication server

To Page Top

(2) Registering JP1 users in the authentication server

Prerequisites

Procedure

From the Start menu of Windows, select Programs, JP1_Base, and then setup.

The JP1/Base Environment Settings dialog box appears.

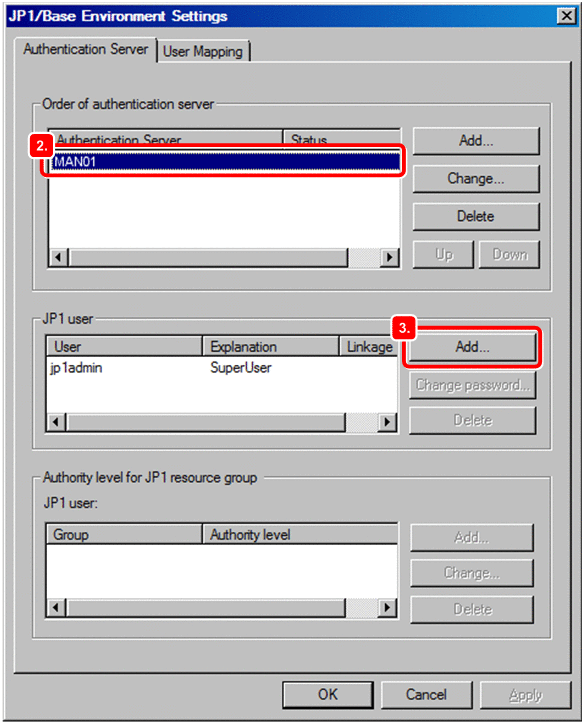

In the Authentication Server tab, in Order of authentication server, select the authentication server in which you want to register a JP1 user.
In JP1 user, click the Add button.

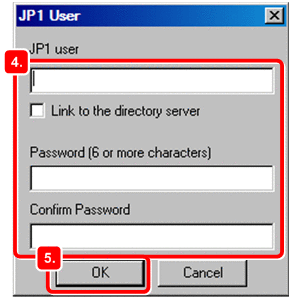

The JP1 User dialog box appears.
In JP1 user, enter the name of the JP1 user. In Password and Confirm Password, enter the password of the JP1 user.
Click the OK button.

The JP1 User dialog box closes.

The specified JP1 user name appears in JP1 user in the JP1/Base Environment Settings dialog box.
Click the Apply button.

Result

The JP1 user is registered.

Postrequisites

Set operation permissions for the JP1 user.

Related topics

1.3.4(3) Setting operation permissions for JP1 users

To Page Top

(3) Setting operation permissions for JP1 users

Set the JP1 permission level for a JP1 user by defining the JP1 resource group and JP1 permission level name for the JP1 user.

Prerequisites

Procedure

From the Start menu of Windows, select Programs, JP1_Base, and then setup.

The JP1/Base Environment Settings dialog box appears.

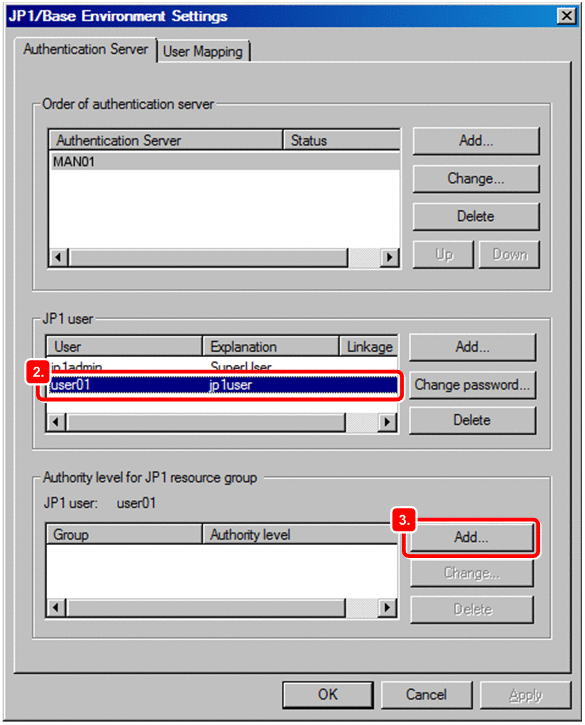

In the Authentication Server tab, in JP1 user, select the JP1 user for which you want to set the JP1 permission level.
In Authority level for JP1 resource group, click the Add button.

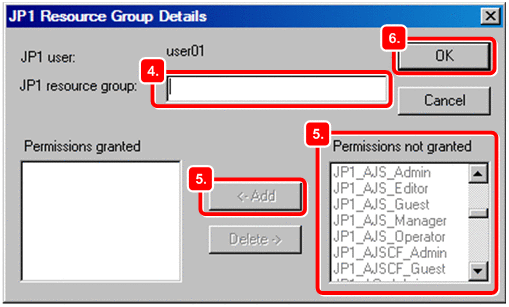

The JP1 Resource Group Details dialog box appears.
In JP1 resource group, enter the JP1 resource group name.

JP1 resource groups are provided to manage units by group. Specify the name of the JP1 resource group to which the unit you want to operate belongs, or specify a new JP1 resource group name.

Tip

Specify an asterisk (*) to allow the JP1 user to access all JP1 resource groups.

In the Permissions not granted list, select the JP1 permission level name you want to set for the JP1 resource group, and then click Add.

The selected JP1 permission level name is added to the Permissions granted list.

Tip

The following describes the JP1 permission level names used in JP1/AJS3:

Classification of operation permissions	JP1 permission level names	Description
Permissions relating to jobnet definition and execution	JP1_AJS_Admin	Administrator role that allows the user to change the unit owner and resource groups, and define, execute, and edit jobnets.
	JP1_AJS_Manager	This permission allows the user to define, execute, and edit jobnets.
	JP1_AJS_Editor	This permission allows the user to define and edit jobnets.
	JP1_AJS_Operator	This permission allows the user to execute and reference jobnets.
	JP1_AJS_Guest	This permission allows the user to reference jobnets.
Permissions relating to manipulation of agent management information	JP1_JPQ_Admin	Administrator role that allows the user to add, change, and delete the definitions of execution agents and execution agent groups.
	JP1_JPQ_Operator	This permission allows the user to change the job transfer restriction status for execution agents and execution agent groups.
	JP1_JPQ_User	This permission allows the user to reference the status and definitions of execution agents and execution agent groups.

Click the OK button.

The JP1 Resource Group Details dialog box closes.

The JP1 resource group that the JP1 user can access and the JP1 permission level for that group appears in Authority level for JP1 resource group in the JP1/Base Environment Settings dialog box.
Click the Apply button.

Result

The JP1 permission level is set for the JP1 user.

Postrequisites

Set user mapping.

Related topics

1.3.4(4) Setting user mapping

To Page Top

(4) Setting user mapping

Map the JP1 user to an OS user on the manager host so that the JP1 user can access OS resources on the manager host.

Prerequisites

Log in to the manager host as an OS user with Administrator permissions.
OS users to be mapped to JP1 users must have permission to log on locally on the manager host. This permission can be set in, for example, Local Security Policy in Administrative Tools in Windows. In advance, assign local logon permission to the OS users to be mapped.

Procedure

From the Start menu of Windows, select Programs, JP1_Base, and then setup.

The JP1/Base Environment Settings dialog box appears.

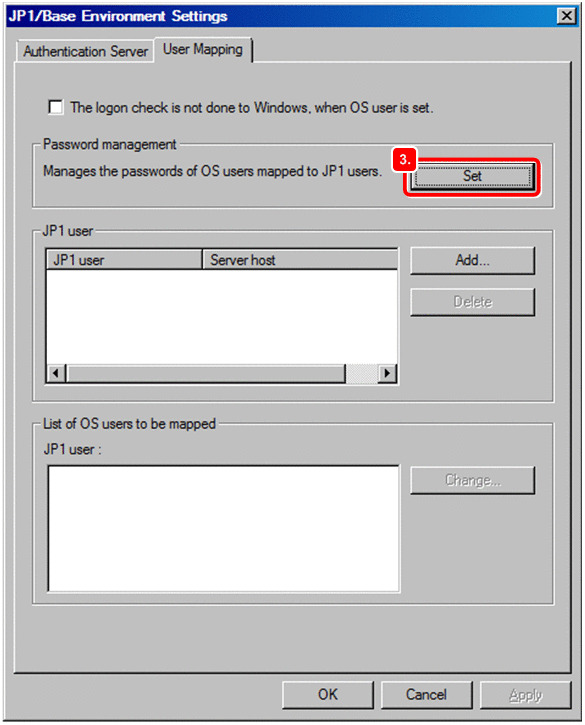

Click the User Mapping tab.

The User Mapping tab appears.
In the Password management, click the Set button.

The Password Manager dialog box appears.
Click the New User button.

The New User dialog box appears.
In User Name, enter the OS user name. In Password and Confirm Password, enter the password of the OS user.
Click the OK button.

A message dialog box indicating that the OS user has been registered appears.
In the message dialog box, click the OK button.

The message dialog box closes. In the Password Manager dialog box, the registered OS user name appears.
In the Password Manager dialog box, click the Exit button.

The Password Manager dialog box closes.
In the JP1/Base Environment Settings dialog box, in JP1 user, click the Add button.

The JP1 User dialog box appears.
In JP1 user, enter the JP1 user name. In Server host, enter the name of the host from which job execution will be requested.

For JP1 user, specify the JP1 user name to be mapped to the OS user. For Server host, specify the host that accepts job execution requests.

Tip

Specify an asterisk (*) in Server host to accept job execution requests from all hosts.
Click the OK button.

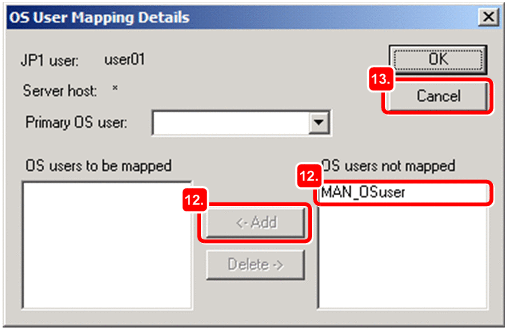

The JP1 User dialog box closes, and then the OS User Mapping Details dialog box appears.

The OS users not mapped list displays the OS user you specified in step 5.
In the OS users not mapped list, select the OS user to be mapped to the JP1 user, and then click Add.

The selected OS user is added to the OS users to be mapped list.
Click the OK button.

The OS User Mapping Details dialog box closes.

The JP user is added in JP1 user in the JP1/Base Environment Settings dialog box. When you select this JP1 user, the mapped OS user appears in List of OS users to be mapped.
Click the Apply button.

Result

The JP1 user and the OS user on the manager host are mapped.

Postrequisites

Set up JP1/AJS3 - Manager on the manager host.

Related topics

1.3.5 Setting up JP1/AJS3 - Manager
