4.4.36 Command Properties dialog box

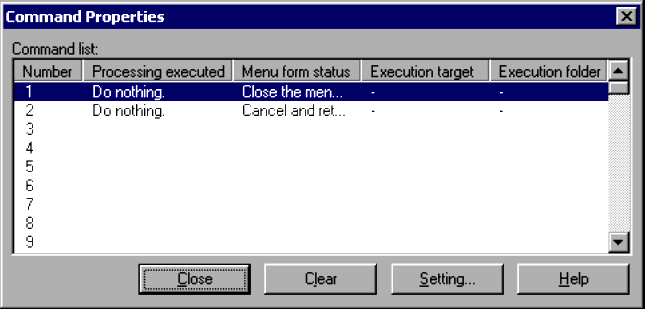

The Command Properties dialog box defines the command execution when a user clicks a button control.
You can choose whether to show or hide this dialog box by choosing View, Command Properties in the Script Menu Editor window.
By default, the first command in the list has Do nothing in the Processing executed field, and Close the menu form in the Menu form status field. The second command has Do nothing and Cancel and return to the previous menu form, respectively.
![[Figure]](GRAPHICS/ZU040436.GIF)
- Organization of this subsection
(1) Components
In the Command Properties dialog box, you can set the following items regarding the execution of a command.
- Command list
-
Lists the commands that you set in the Set Command Properties dialog box. The list contains the following items:
- Number
-
Shows the command number.
- Processing executed
-
Shows the command action.
- Menu form status
-
Shows the status of the menu form after the command is executed.
- Execution target
-
Shows the entity on which the command is executed.
- Execution folder
-
Shows the command execution folder.
- Close
-
Closes the Command Properties dialog box.
- Clear
-
Deletes the properties defined for a command selected in the list.
- Setting
-
Click to define the command properties. The Set Command Properties dialog box appears.
(2) Operations
-
Click Close to close the Command Properties dialog box.
