4.4.35 Combo Box Properties (Style) dialog box
The Combo Box Properties dialog box appears when you select and double-click a combo box in the menu form view of the Script Menu Editor window.

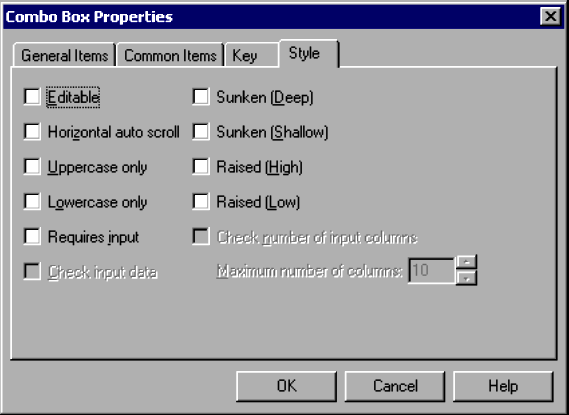

The Combo Box Properties dialog box has four tabs: General Items, Common Items, Key, and Style. Click the Style tab to display the Combo Box Properties (Style) page.
![[Figure]](GRAPHICS/ZU040435.GIF)
- Organization of this subsection
(1) Components
In the Combo Box Properties (Style) dialog box, you can set the following items for a combo box.
- Editable
-
Creates a combo box that can be edited.
- Horizontal auto scroll
-
Automatically scrolls the text if it exceeds the visible area.
- Uppercase only
-
Displays all the entered text as uppercase characters.
- Lowercase only
-
Displays all the entered text as lowercase characters.
- Requires input
-
Requires the user to type text in the combo box.
- Check input data
-
Returns an error if the user enters data that is not in the list attached to the combo box. This check box is available only if you select the Editable check box.
- Sunken (Deep)
-
Makes the combo box appear deeply inset.
- Sunken (Shallow)
-
Makes the combo box appear slightly inset.
- Raised (High)
-
Makes the combo box appear prominently raised.
- Raised (Low)
-
Makes the combo box appear slightly raised.
- Check number of input columns
-
Select this check box to check the number of columns entered by the user.
This check box is available only if you select the Editable check box.
- Maximum number of columns
-
Specify the maximum number of columns that the user can enter. This field is available only if you select Check number of input columns.
Set a number in the range 1 to 1,024. 10 is set by default.
(2) Operations
-
Click OK to apply the settings and close the Combo Box Properties dialog box.
-
Click Cancel to close the dialog box without applying the settings.
(3) Processing
-
You cannot select both Uppercase only and Lowercase only.
-
The data check specified in Check input data is case insensitive.
