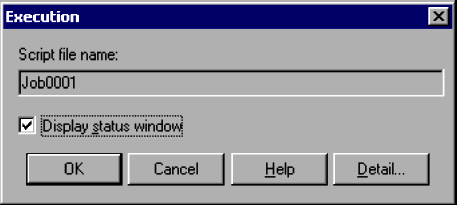

4.1.7 Execution dialog box
The Execution dialog box appears when you select an icon in the Script Manager window and choose File, Execute.
![[Figure]](GRAPHICS/ZU040107.GIF)
- Organization of this subsection
(1) Components
- Script file name
-
Shows the name of the file (icon) that you selected in the Script Manager window.
- Display status window
-
Select whether to display windows showing the analysis trace, execution trace, and execution status.
(2) Operations
-
Click OK to execute the script.
-
Click Cancel to cancel script execution.
-
Click Detail to set the execution environment. The settings are entered in an execution environment file.
For information on setting the execution environment, see 4.1.8 Set Execution Environment (Start Information) dialog box, 4.1.9 Set Execution Environment (Terminate Information) dialog box, and 4.1.10 Set Execution Environment (Trace Information) dialog box.
