4.1.10 Set Execution Environment (Trace Information) dialog box
The Set Execution Environment dialog box appears when you select one or more icons in the Script Manager window and choose File, Set Execution Environment, All Items. It also appears when you click the Detail button in the Execution dialog box.

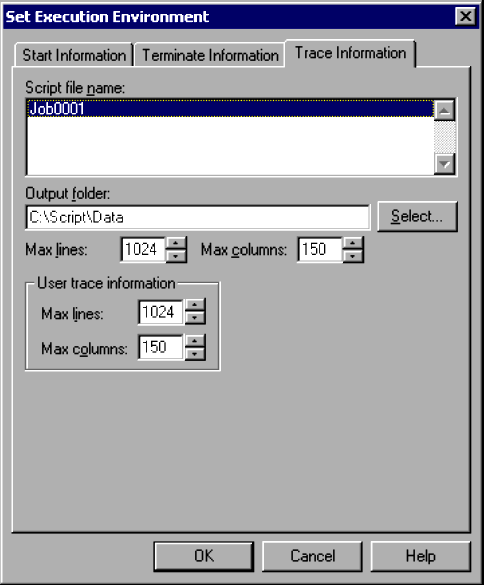

The Set Execution Environment dialog box has three tabs: Start Information, Terminate Information, and Trace Information. Click the Trace Information tab to display the Set Execution Environment (Trace Information) page.
![[Figure]](GRAPHICS/ZU040110.GIF)
- Note
-
If you attempt to set up the execution environment (trace information) while the JP1/Script service is not running, a dialog box containing the following error message appears:
The operation could not be performed because the JP1/Script service is not running. Launch the JP1/Script service, and then re-execute the operation.
- Organization of this subsection
(1) Components
In the Set Execution Environment (Trace Information) dialog box, you can set the following items for the script file(s) you selected.
- Script file name
-
Lists the name of the files (icons) that you selected in the Script Manager window. If you selected multiple icons, the file names are sorted in ascending order.
- Output folder
-
Specify a folder for the analysis trace file and execution trace file.
If you specify a folder that does not exist, the folder is created when the script file starts.
If you click the Select button, the Select Folder dialog box appears.
The entry box is available only if you select the Permit multi-activation check box in the Set Execution Environment (Start Information) dialog box.
- Max lines
-
Specify the maximum number of lines to output from the analysis trace file and execution trace file. Set a number in the range 100 to 9,999.
- Max columns
-
Specify the maximum number of columns to output from the analysis trace file and execution trace file. Set a number in the range 128 to 1,024.
- User trace information
-
- Max lines
-
Specify the maximum number of lines to output from the user trace file. Set a number in the range 100 to 9,999.
- Max columns
-
Specify the maximum number of columns to output from the user trace file. Set a number in the range 128 to 1,024.
(2) Operations
-
Set information about the execution environment as required.
-
Click OK to create the settings as an execution environment file.
-
Click Cancel to close the dialog box without creating an environment execution file.
(3) Processing
-
When you select multiple icons, items are set by default to the settings for the first file listed in Script file name. If you select one of the listed files, the environment settings for that file apply to all the files.
