3.6.10 Centering controls on a menu form

You can center a control in the vertical or horizontal direction on a menu form.

To center a control in the horizontal direction:

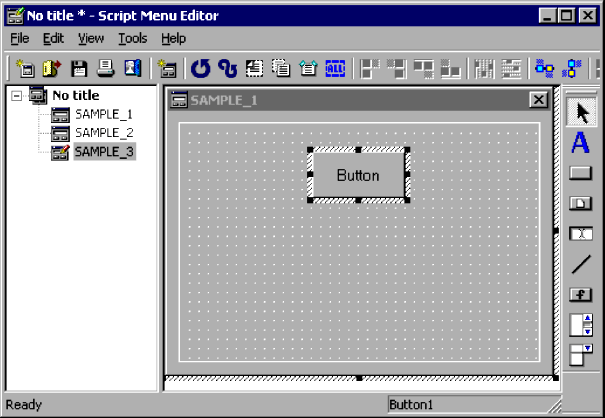

  1. Select a control in the menu form.

    [Figure]

  2. Choose Edit, Layout, Arrange on Menu Form, Center Horizontally.

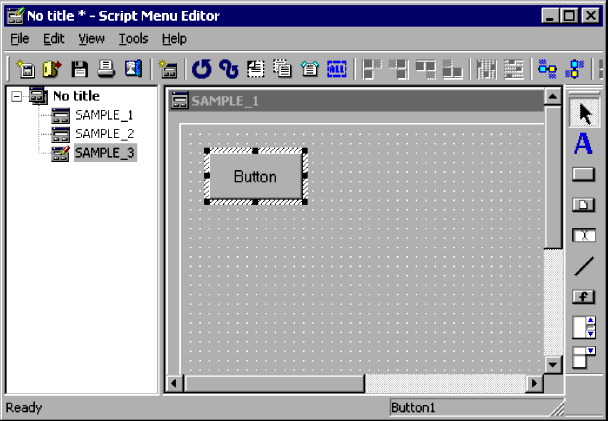

    The selected control is centered in the horizontal direction on the menu form.

    [Figure]

To center a control in the vertical direction:

  1. Select a control in the menu form.

    [Figure]

  2. Choose Edit, Layout, Arrange on Menu Form, Center Vertically.

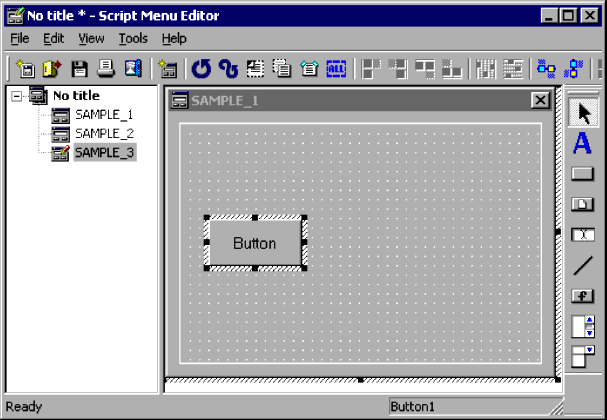

    The selected control is centered in the vertical direction on the menu form.

    [Figure]
