3.6.9 Spacing controls equally

You can arrange three or more controls so that they are evenly spaced in the vertical or horizontal direction.

To arrange controls with equal spacing in the horizontal direction:

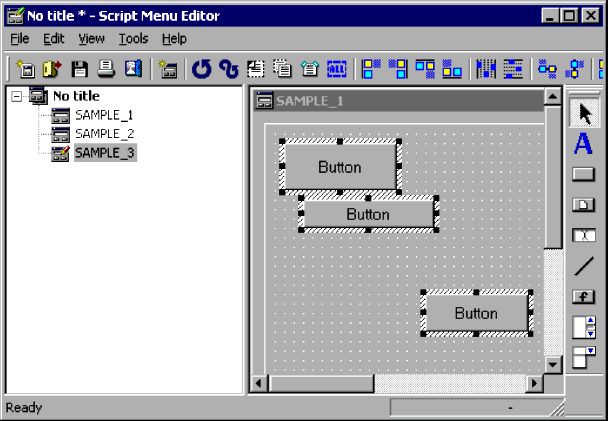

1. Select three or more controls in the menu form.



2. Choose Edit, Layout, Equal Spacing, Horizontal.

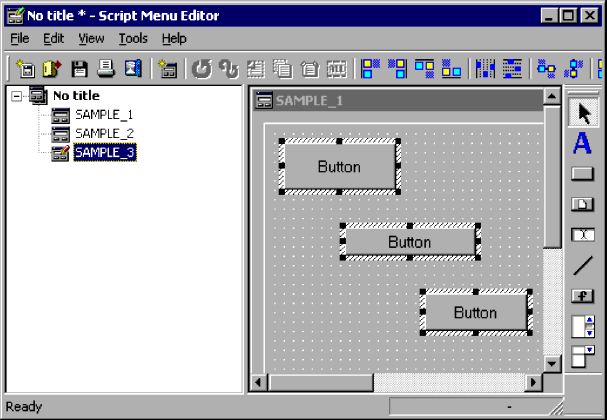

   The control(s) in the middle are evenly spaced between the leftmost and rightmost of the selected controls.



To arrange controls with equal spacing in the vertical direction:

1. Select three or more controls in the menu form.



2. Choose Edit, Layout, Equal Spacing, Vertical.

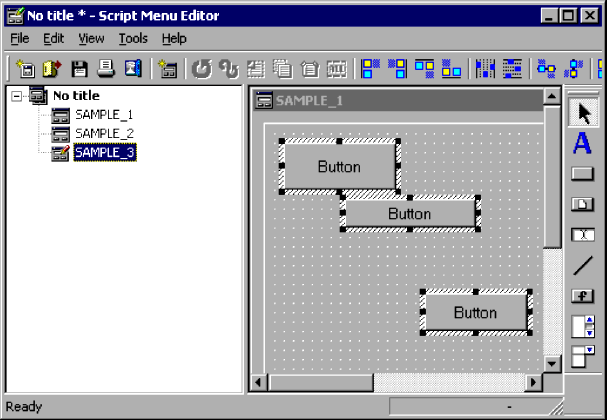

   The control(s) in the middle are evenly spaced between the topmost and bottommost of the selected controls.



Note

The Equal Spacing command is disabled unless three or more controls are selected.
