6.13.20 ReplaceObjects(Replace value function)

This section defines the Replace value function (replace).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items:

Table 6-45 TableReplaceObjectsDefinition item

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName type This is mandatory item. You cannot define the Name in Objects, in duplication.
Input Input See "6.12.2 Setting up the mapping definition". -
TableID Transformation table ID Character string having less than 1,024 characters (you cannot define linefeed code) -
KeyColumn Search key column specification "left" or "right" This is mandatory item.

In case of "left"
For search key column specification, set "Left column".

In case of "right"
For search key column specification, set "Right column".
FaultError Operation in case of failure in search "y" or "n" This is mandatory item.

In case of "y"
For the operation in case of failure in search, set "Conversion error".

In case of "n"
For the operation in case of failure in search, set "Substitute default value".
DefaultValue Value Character string having less than 1,024 characters (You cannot define linefeed code) When SortDataType is "y", the setting value is not incorporated.

(Legend)
-: Corresponding item does not exist.

(2) Definition example

Following figure shows the definition example:

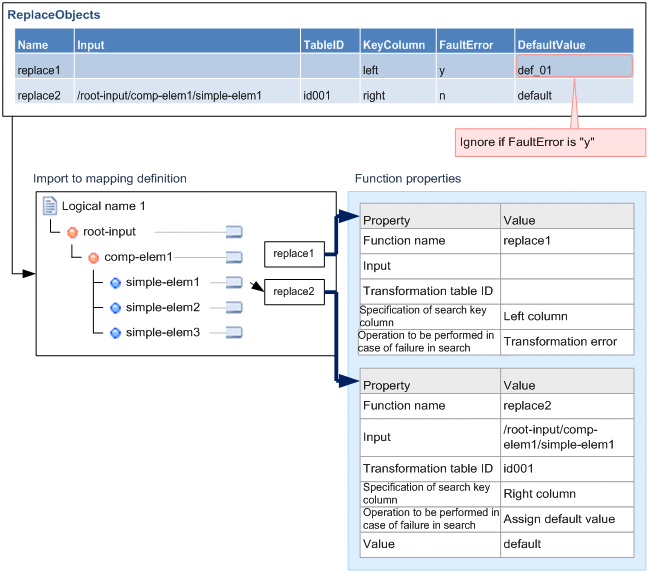

Figure 6-86 FigureReplaceObjectsDefinition example

[Figure]
