6.13.19 ChooseObjects(Select function)

This section defines the Select function (choose).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items:

Table 6-44 TableChooseObjectsDefinition item

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName type For details on the value that you can define, see "6.13.24 Objects for which you can define the same Name element in multiple rows".
Condition Conditions See "6.12.2 Setting up the mapping definition" You can define multiple conditions in the same Name.#
When you want to do definition that does not match with any condition, specify "#other". In the same Name, you can specify "#other" only in one line. Also, when you do not specify even one "#other" in the same Name, output value of "When definition does not match with any condition" is assumed.
OutputValue Output value See "6.12.2 Setting up the mapping definition" You can define multiple values in the same Name.#
In case of "blank node" specify "#empty" and in case of "No output", specify "#notoutput".

Note#
Set up the condition and output value in the list, in the defined order.

(2) Definition example

Following figure shows the definition example:

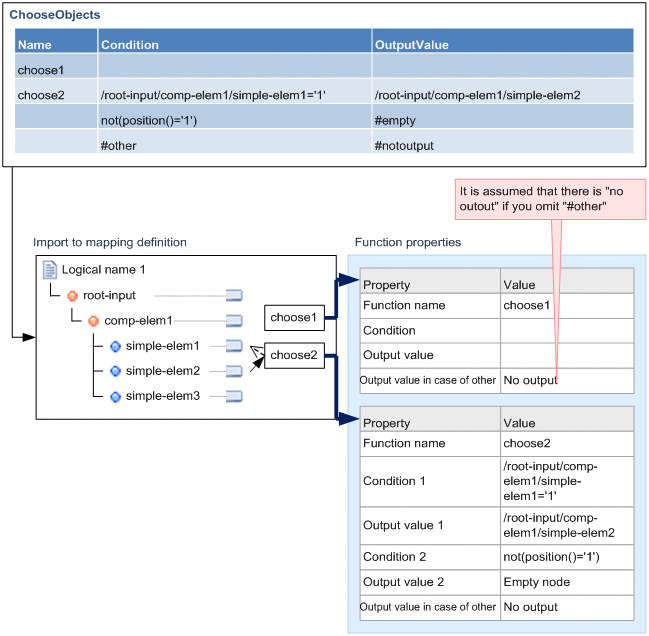

Figure 6-85 FigureChooseObjectsDefinition example

[Figure]
