uCosminexus Service Platform, Basic Development Guide
This section defines the Acquire node count function (count).
Following table describes definition items:
Table 6-41 TableCountObjectsDefinition item
Item name | Definition contents | Value that you can define | Additional description |
---|---|---|---|
Name | Function name | Value of NCName type | This is mandatory item. You cannot define the Name in Objects, in duplication. |
Input | Input | See "6.12.2 Setting up the mapping definition" | - |
Following figure shows the definition example:

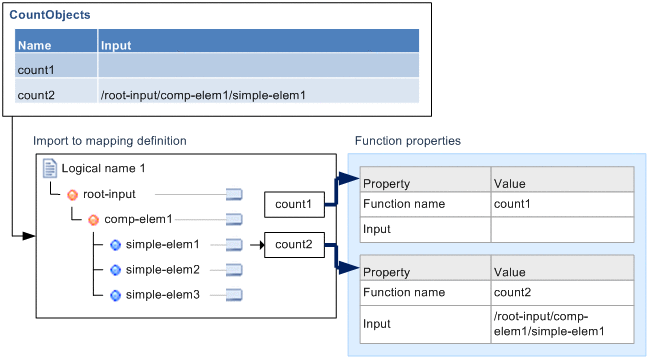

Figure 6-80 FigureCountObjectsDefinition example
