6.13.15 NameObjects(Acquire node name function)

This section defines the Acquire node name function (name).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items:

Table 6-40 TableNameObjectsDefinition item

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName type This is mandatory item. You cannot define the Name in Objects, in duplication.
Input Input See "6.12.2 Setting up the mapping definition" -

(Legend)
-: Corresponding item does not exist.

(2) Definition example

Following figure shows the definition example:

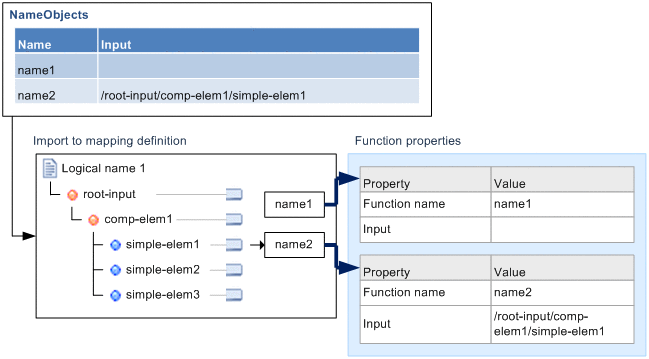

Figure 6-79 FigureNameObjectsDefinition example

[Figure]
