uCosminexus Service Platform, Basic Development Guide

[Contents][Glossary][Index][Back][Next]

6.13.11 SumObjects(Sum up nodes function)

This section defines the Sum up nodes function (sum).

Organization of this subsection
(1) Definition item
(2) Definition example

(1) Definition item

Following table describes definition items:

Table 6-36 TableSumObjectsDefinition item

Item name Definition contents Value that you can define Additional description
Name Function name Value of NCName For details on the values that you can define, see "6.13.24 Objects for which you can define the same Name element in multiple rows".
Input Input See "6.12.2 Setting up the mapping definition" You can perform multiple definitions in same Name.
However, you cannot specify same Input for multiple times in the same Name.
Sets values in the list, in the defined order.

(2) Definition example

Following figure shows the definition example:

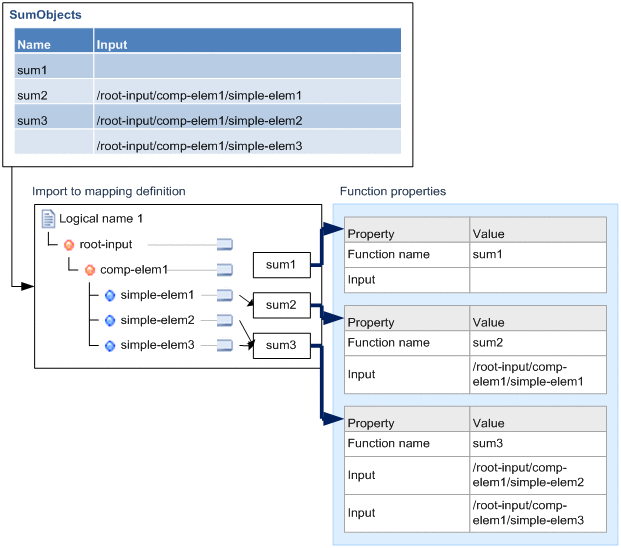

Figure 6-75 FigureSumObjectsDefinition example

[Figure]
