6.6.3 Mapping Looping Dependent Targets

When you use the loop node function to map a transformation-source node to a transformation-destination node, that loop node function is automatically mapped as a looping target of a descendant node's mapping source. Also, deleting the loop node function and mapping lines cancel the looping of a node. In such a case, the loop node function set up in the ancestor node of the node, for which looping is cancelled, will be automatically mapped as a looping target of the mapping source in the descendant node. This is called a looping dependent target.

A looping dependent target is set up in the following cases:

The timing at which a looping dependent target is mapped in each case is explained below.

Organization of this subsection
(1) When a loop is specified for a node and its descendant node is mapped later
(2) When a node is mapped and a loop is then specified for its ancestor node
(3) When the looping of a node for which looping is set up in the ancestor node is cancelled

(1) When a loop is specified for a node and its descendant node is mapped later

This subsection explains the timing at which the looping dependent target is mapped when a loop is specified for a node and its descendant node is mapped later.

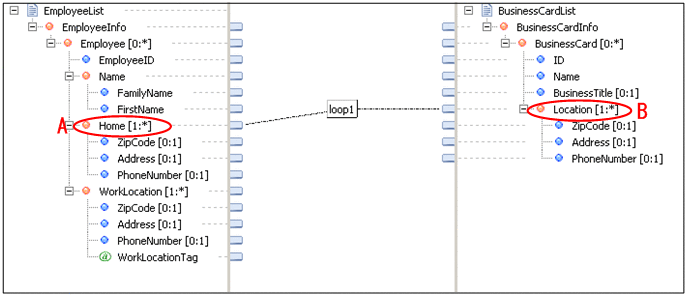

Figure 6-26 Mapping when the loop node function is used

[Figure]

First, the loop node function is used to map a transformation-source node A to a transformation-destination node B.

Next, node C, which is a descendant node of transformation-source node A, is mapped to node D, which is a descendant node of transformation-source node B. The following figure shows the timing at which the looping dependent target is mapped when no function is used for the descendant node.

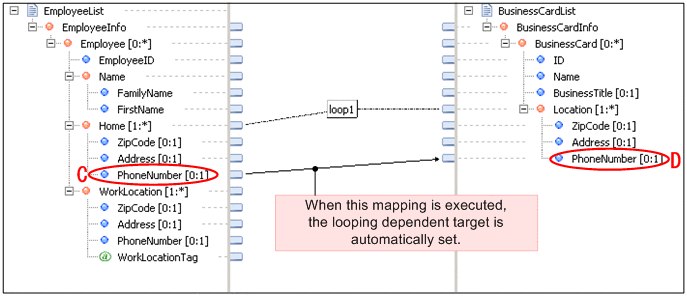

Figure 6-27 Timing at which the looping dependent target is mapped (When no function is used for the descendant node)

[Figure]

When node D is connected, a looping dependent target is automatically set up for the descendant node. In Figure 6-27, loop1 is set up for the looping dependent target of descendant node D's mapping source.

If multiple functions are used for mapping a descendant transformation-source node to the transformation-destination node, a looping dependent target is automatically set up when the transformation-destination node is connected. The following figure shows the timing at which the looping dependent target is mapped when multiple functions are used for the descendant node.

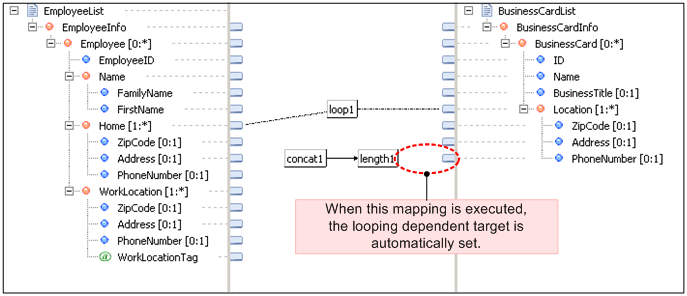

Figure 6-28 Timing at which the looping dependent target is mapped (When multiple functions are used for the descendant node)

[Figure]

(2) When a node is mapped and a loop is then specified for its ancestor node

This subsection explains the timing at which the looping dependent target is mapped when a node is mapped, and a loop is then specified for its ancestor node.

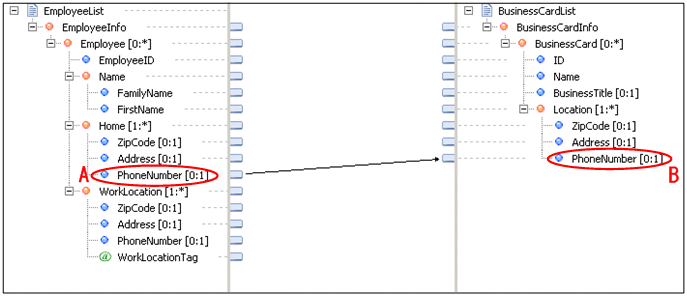

Figure 6-29 Mapping when the loop node function is not used

[Figure]

First, a transformation-source node A is mapped to a transformation-destination node B.

Next, node C, which is a descendant node of transformation-source node A, is mapped to node D, which is a descendant node of transformation-source node B. The following figure shows the timing at which the looping dependent target is mapped when the ancestor node is mapped later.

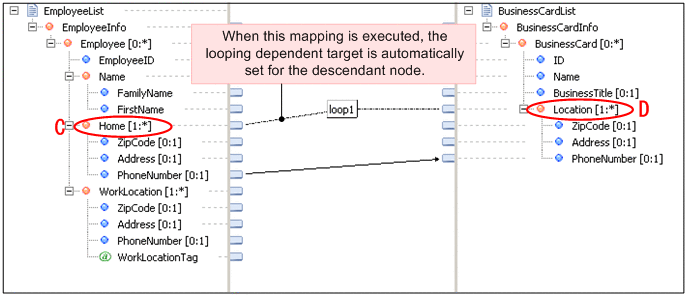

Figure 6-30 Timing at which the looping dependent target is mapped (When the ancestor node is mapped later)

[Figure]

When node C is mapped to node D, the looping dependent target is automatically set up for the descendant node. In Figure 6-29, the looping dependent target loop1 is set up for the descendant node B.

(3) When the looping of a node for which looping is set up in the ancestor node is cancelled

The timing at which the looping dependent target is mapped when the looping of a node for which looping is set up in the ancestor node is cancelled is as follows:

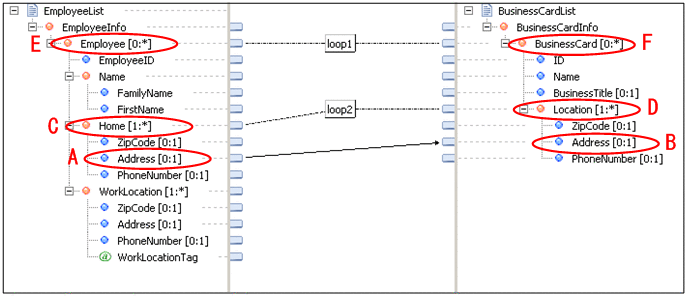

Figure 6-31 Mapping when the loop node function is used and when the loop node function is not used

[Figure]

First, a transformation-source node A is mapped to a transformation-destination node B.

Next, the loop node function is used, and node C, which is a descendant node of transformation-source node A, is mapped to node D, which is a descendant node of transformation-source node B

After this, the loop node function is used, and the transformation-source node E that is the ancestor node of the transformation-source node A and transformation-source node C is mapped to the transformation-destination node F that is the ancestor node of the transformation-destination node B and transformation-destination node D.

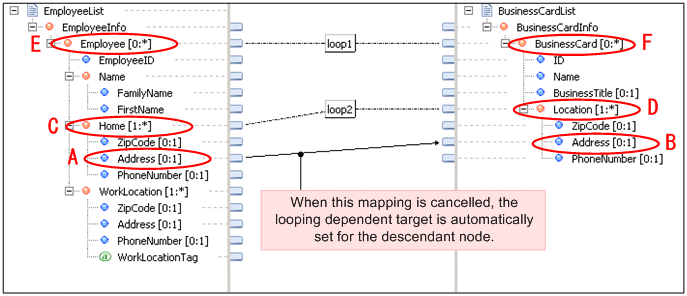

Figure 6-32 Timing at which the looping dependent is mapped (When mapping is cancelled)

[Figure]

When the mapping of node C to node D is cancelled, the looping dependent target is set up automatically for the descendant node of the node in which the mapping is cancelled. In Figure 6-31, the looping dependent target loop1 is set up for the descendant node B.
