Assigns the node name of a mapping source to a mapping destination. If the instance of the mapping source (transformation-source node) does not exist, an empty string is assigned.
- Organization of this subsection
- (1) Function used
- (2) Setup procedure
(1) Function used
To assign the node name of a mapping source to a mapping destination, you use the acquire node name function. The following figure shows an example that uses the acquire node name function.

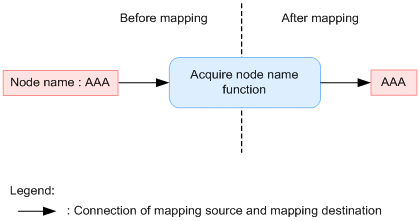

Figure 6-15 Usage example of the acquire node name function
(2) Setup procedure
To assign the node name of a mapping source to a mapping destination:
- From the palette, choose the acquire node name function (name), and deploy it in the mapping viewer.
- Set up a mapping line.
- Use one of the following methods to open the Acquire Node Name dialog box.
- Right--click the acquire node name function, and choose Setting.
- Double--click the acquire node name function.
The Acquire Node Name dialog box opens.
For details about the Acquire Node Name dialog box, see the manual Cosminexus Service Platform Overview.
- To specify a condition for the transformation-source node specified in Input and map it only when this condition is satisfied, click Set Node Condition.
The Set Node Condition dialog box opens.
For details about how to set a node condition, see 6.7 Specifying Node Conditions. For details about the Set Node Condition dialog box, see the manual Cosminexus Service Platform Reference.
- Click OK.
