6.5.13 Assigning a Node Count

Assigns the node count of a mapping source node set to a mapping destination.

Organization of this subsection
(1) Function used
(2) Setup procedure

(1) Function used

To assign the node count of a mapping source node set to a mapping destination, you use the acquire node count function. The following figure shows an example that uses the acquire node count function.

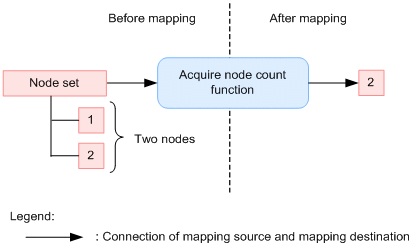

Figure 6-14 Usage example of the acquire node count function

[Figure]

(2) Setup procedure

To assign the node count of a mapping source node set to a mapping destination:

  1. From the palette, choose the acquire node count function (count), and deploy it in the mapping viewer.
  2. Set up a mapping line.
  3. Use one of the following methods to open the Acquire Node Count dialog box.
    • Right--click the acquire node count function, and choose Setting.
    • Double--click the acquire node count function.
    The Acquire Node Count dialog box opens.
    For details about the Acquire Node Count dialog box, see the manual Cosminexus Service Platform Overview.
  4. To specify a condition for the transformation-source node specified in Input and map it only when this condition is satisfied, click Set Node Condition.
    The Set Node Condition dialog box opens.
    For details about how to set a node condition, see 6.7 Specifying Node Conditions. For details about the Set Node Condition dialog box, see the manual Cosminexus Service Platform Reference.
  5. Click OK.
