6.5.9 Summing Up the Node Numbers of Multiple Node Sets

Specifies the node sets of multiple mapping sources and sums up the node numbers included in these node sets.

Organization of this subsection
(1) Function used
(2) Setup procedure

(1) Function used

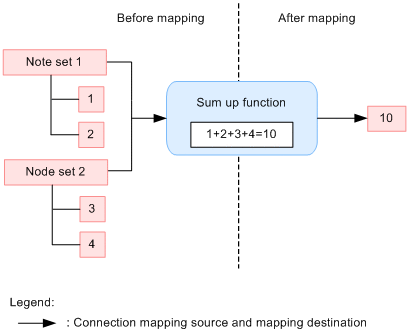

To sum up the node numbers of multiple node sets, you use the sum up nodes function. The following figure shows an example that uses the sum up nodes function.

Figure 6-10 Usage example of the sum up nodes function

[Figure]

(2) Setup procedure

To sum up the node numbers of multiple node sets:

  1. From the palette, choose the sum up nodes function (sum), and deploy it in the mapping viewer.
  2. Set up a mapping line.
  3. Use one of the following methods to open the Sum Up Nodes dialog box.
    • Right--click the sum up nodes function, and choose Setting.
    • Double--click the sum up nodes function.
    The Sum Up Nodes dialog box opens.
    For details about the Sum Up Nodes dialog box, see the manual Cosminexus Service Platform Overview.
  4. To add the numbers of the mapping sources to be summed up to Input, click Add Node.
    The Node Chooseion dialog box opens.
  5. Specify the node sets that become the mapping sources.
    The numbers of the mapping sources to be summed up are set in Input.
  6. To specify a condition for the transformation-source node specified in Input and map it only when this condition is satisfied, click Set Node Condition.
    The Set Node Condition dialog box opens.
    For details about how to set a node condition, see 6.7 Specifying Node Conditions. For details about the Set Node Condition dialog box, see the manual Cosminexus Service Platform Reference.
  7. Click OK.
