The operations supported by the file operations adapter include the following types:
- File conversion operation
- File replication operation
- File or folder deletion operation
- File compression operation
- File un-compression operation
The following figure shows the functioning of each operation:

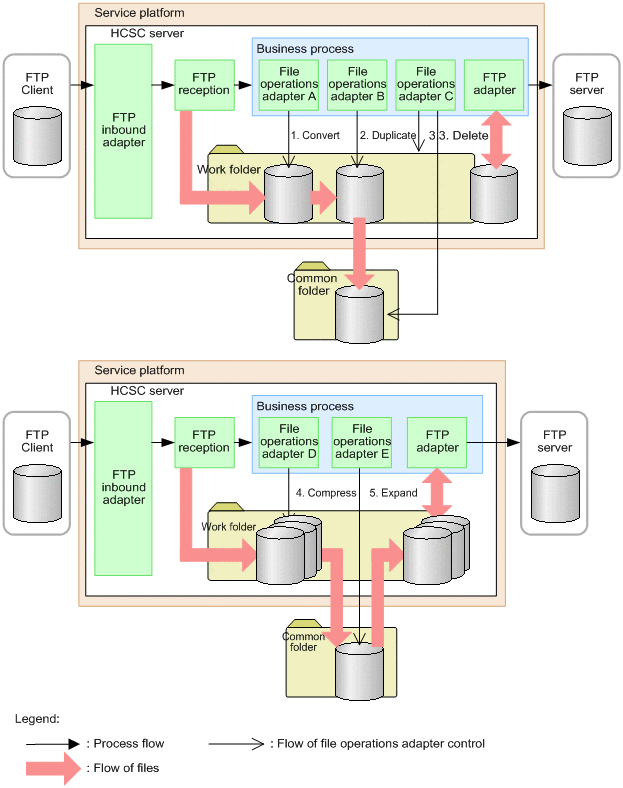

Figure 8-25 Functioning of the file operations adapter
The following is a description of the points 1 to 5 in the figure. The following numbers correspond to the numbers in the figure:
- The file operations adapter A (file conversion operation) reads the conversion source input file from the work folder (or common folder), and writes the post-conversion output file to the work folder (or common folder).
- The file operations adapter B (file replication operation) reads the input file from the work folder (or common folder), and replicates the output file in the work folder (or common folder).
- The file operations adapter C (file or folder deletion operation) deletes the files in the common folder, or the work folder.
- The file operations adapter D (file compression operation) reads the compression source input file from the work folder (or common folder), and writes the post-compression output file in the work folder (or common folder).
- The file operations adapter E (file un-compression operation) reads the un-compression source input file from the work folder (or common folder), and writes the output file after un-compression in the work folder (or common folder).
To use the file operations adapter to convert or delete files, you must define a file operations adapter for each operation.
You can also combine and use the file operations adapters of the respective operations.
