The process for each logical server at the time of HCSC server startup is monitored by Manager. If failures such as process down or hang-up occur, the logical server restarts automatically. Therefore, it is recommended that you monitor the following processes at the time of monitoring service platform systems by using JP1:

• Management Server
• Administration Agent


  Hint

  Among all processes of each logical server, if you monitor a process other than the processes recommended above by using JP1, you will perform double monitoring of the process.

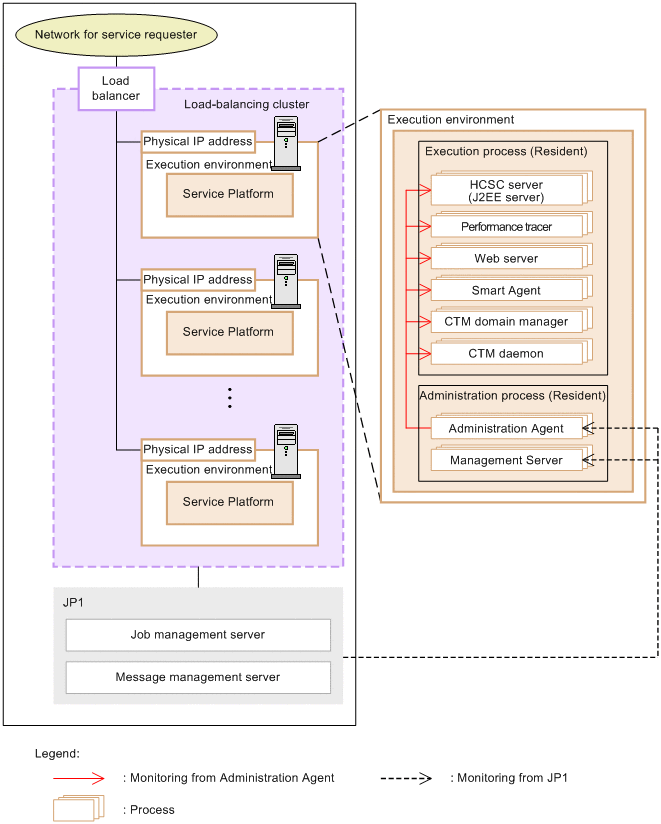

The following figure shows the process configuration at the time of HCSC server startup:

Figure 7-2 Process configuration at the time of HCSC server startup

The following table lists names of the processes recommended for JP1 monitoring:

Table 7-1 Names of the processes recommended for monitoring from JP1

Process recommended for monitoring	Process name
	For Windows	For UNIX
Management Server	mngsvr.exe	cjstartsv#
Administration Agent	adminagentsv.exe	adminagent

Note#

Monitors with the command line name (equivalent to ps -ef). An execution example is as follows:

/opt/Cosminexus/CC/server/bin/cjstartsv cosmi_m

"cosmi_m" is the default server name. When you change to a server name other than "cosmi_m", you must also change the command line name that performs the monitoring.

Also, when you use the database, it is recommended that you monitor the processes of the used database with JP1.For these process names, see the manual of each database.

When you monitor number of processes with upper and lower limits, if you monitor with 1 as the upper and lower limit, the cjstartsv process and the adminagent process temporarily become bigger than 1, and the fault is detected. As recommended by Manager, perform monitoring without any upper limit, since Management Server and Administration Agent have a functionality to suppress multiple startups.
