With JP1 events, you can perform the focused management for failures that occur in systems. With the Cosminexus Service Platform, you can link a system with JP1/IM-Manager to detect failures, and can report failure messages to JP1 as JP1 events. In JP1/IM-View, you can also connect to the host of JP1/IM-Manager and display the JP1 events issued from the execution environment. You can customize the messages issued as JP1 events according to your environment.

If you in advance specify which message is to be reported for which failure, you can monitor the message log displayed in JP1/IM-View, and simplify the investigation of the type and cause of the failure.

An overview of failure monitoring by linking with JP1/IM is as follows:

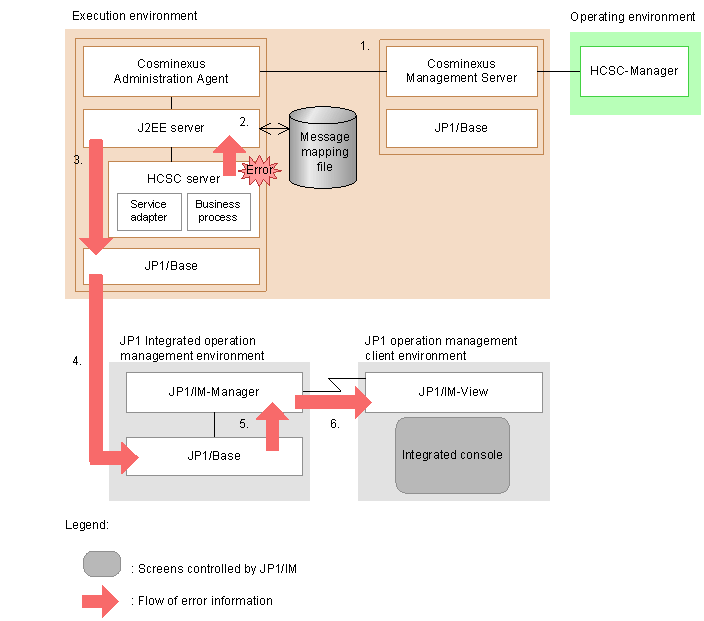

Figure 7-1 Overview of failure monitoring by linking with JP1/IM

1. In the Cosminexus Management Server, you specify the settings for issuing JP1 events to be managed in JP1/IM.
2. A message, for a failure that occurs in the execution environment, converts to a JP1 event.
3. A message, for a failure that occurs in the system, will be issued as a JP1 event using JP1/Base.
4. JP1 events are transferred to the JP1 integrated operation management environment.
5. JP1/IM-Manager acquires the JP1 events transferred to the JP1integrated operation management environment.
6. You can use JP1/IM-View from the integrated console, connect to JP1/IM-Manager, and then check the details of JP1 events.
