uCosminexus Service Platform, Overview
During flow, you can divide the processing flow into two or more flows and can sequentially proceed with each flow.
The following figure shows the execution of flow in a business process:

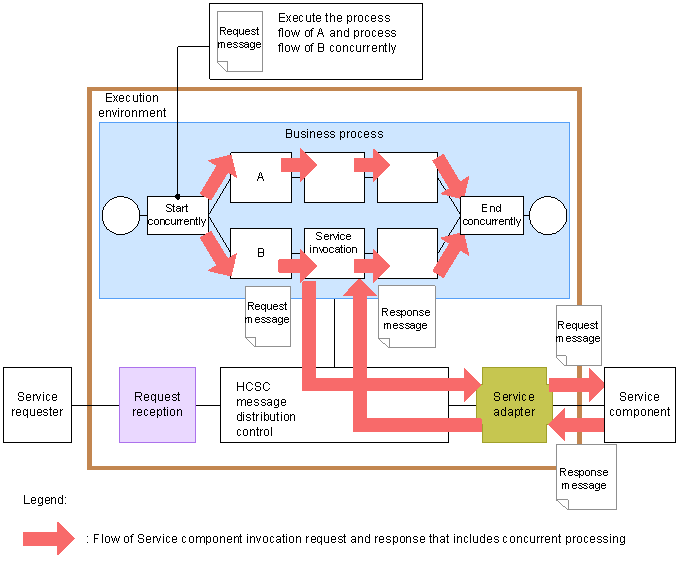

Figure 3-9 Execution of flow in a business process
Use the flow start activity at the location in which the flow starts and the flow end activity at the location in which the flow ends.
By using a link connection, you can also control the order of the individual process flows to be executed in parallel.
Note that during flow, individual process flows are executed sequentially. You cannot execute multiple process flows simultaneously.
