HTTP requests sent from Web browser used as HTTP client are received in HTTP reception through Web server. After that, HTTP request is transformed to a request message (service component invocation request) and the service component is invoked in a business process.
During response, the response message in the business process is transformed to HTTP response format in HTTP reception and response returns to Web browser.

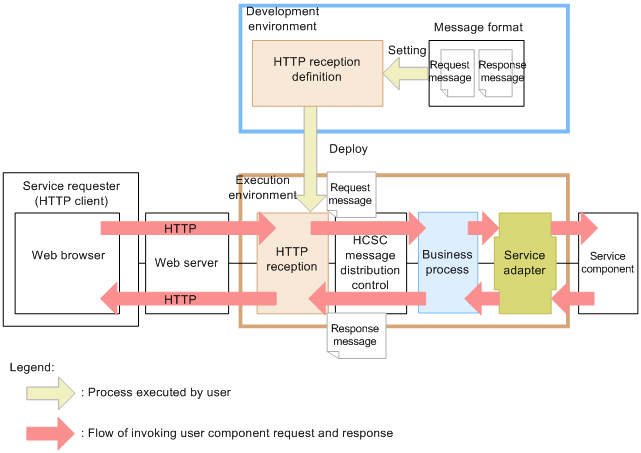

The following figure shows service component invocation request and response using HTTP reception:
Figure 2-70 Flow of service component invocation request and response using HTTP reception
