If you use the import component function, you can consolidate repositories by executing only the operation commands without preparing a development environment. This enables you to consolidate the development environment (master) and the test environment on a single machine, thereby reducing the number of machines.

For the flow of consolidating repositories in the development environment, see "Figure1-19 Flow for consolidating repositories in the development environment", and for the flow of consolidating repositories in the operating environment, see "Figure 1-20 Flow for consolidating repositories in the operating environment".

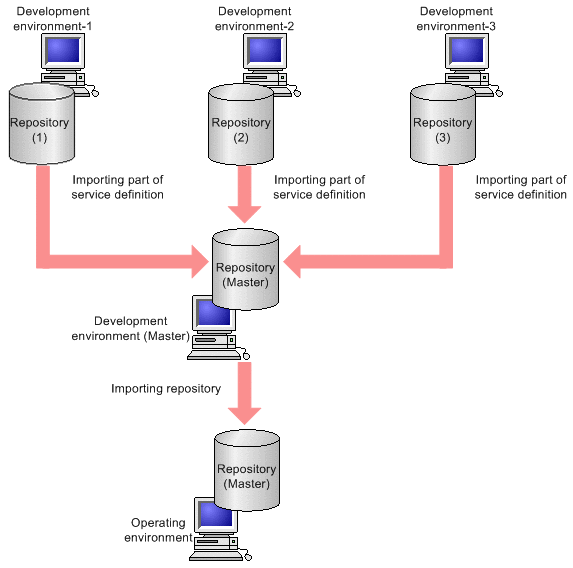

Figure 1-19 Flow for consolidating repositories in the development environment

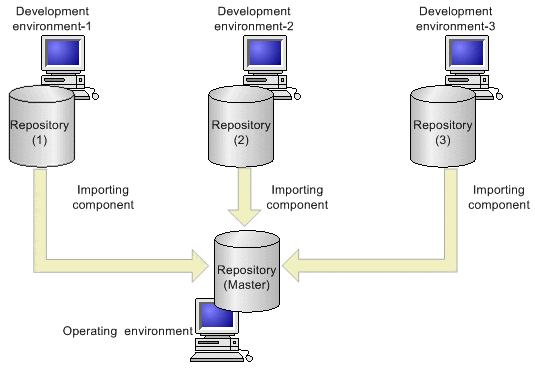

Figure 1-20 Flow for consolidating repositories in the operating environment

The following figure shows the procedure for migrating an environment when you consolidate repositories in the development environment and the operating environment:

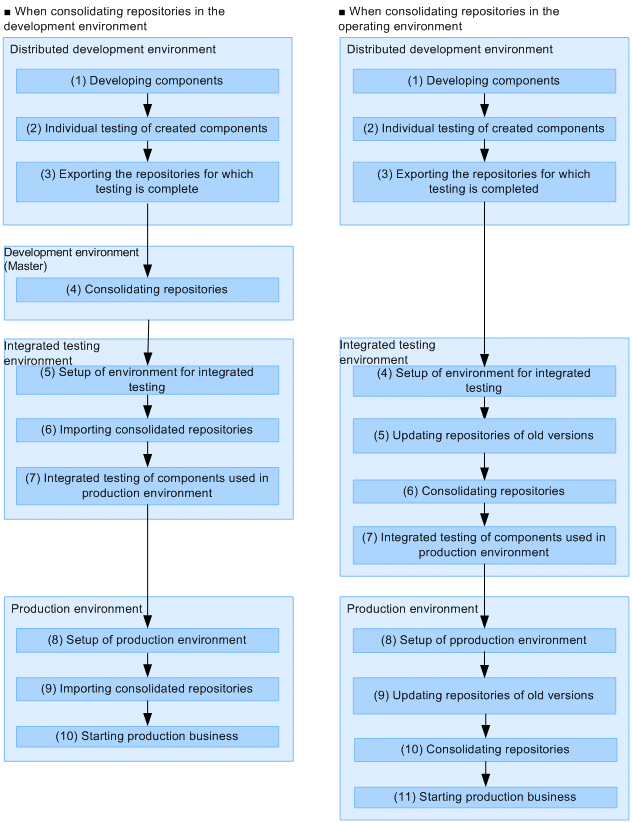

Figure 1-21 Procedure for migrating an environment
