Editing Message-Driven Bean properties

After adding an EJB-JAR property, you add and edit the Message-Driven Bean property. This section describes the cosminexus.xml editor items and settings used for adding and editing a Message-Driven Bean property.

Organization of this subsection: (1) Left pane; (2) Right pane

(1) Left pane

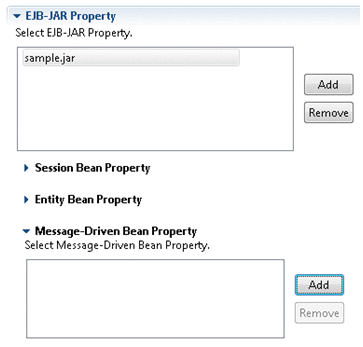

Select Message-Driven Bean Property. The following items are displayed, and you can add or delete the property:

[Figure]

Message-Driven Bean Property

Click the following button to add or delete the property:

Add button

Adds the Message-Driven Bean property.

Note that if you click the Add button, the following tags are inserted at the end of the Message-Driven Bean property in the source file:

<message>
<ejb-name>Specify the EJB name for the MessageDrivenBean property.</ejb-name>
</message>

Remove button: Deletes the Message-Driven Bean property selected in the list.

(2) Right pane

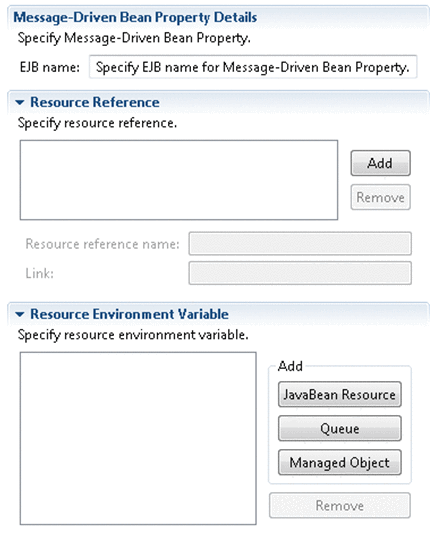

If you select Message-Driven Bean Property in the left pane, the following items are displayed in the right pane, and you can specify the property:

[Figure]

Message-Driven Bean Property Details

Specify the Message-Driven Bean property details.

EJB name: Specify the key for identifying Message-Driven Bean. Corresponds to the value of the <ejb-name> tag under the <message> tag that exists under the <ejb-jar> tag.

Resource Reference: Edit the resource references. For details on the contents that you can specify, see the description about the resource references in 5.3.4(2) Right pane.

Resource Environment Variable: Edit the resource environment variables. For details on the contents that you can specify, see the description about the resource environment variables in 5.3.4(2) Right pane.
