After adding an EJB-JAR property, you add and edit a Session Bean property. This section describes the cosminexus.xml editor items and settings used for adding and editing a Session Bean property.
- Organization of this subsection
- (1) Left pane
- (2) Right pane
(1) Left pane

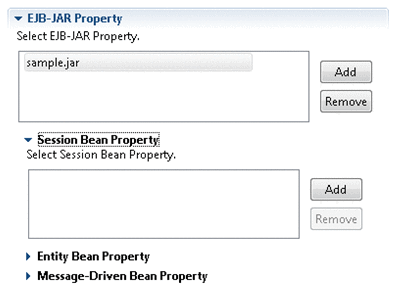

Select Session Bean Property. The following items are displayed, and you can add or delete the property:
![[Figure]](FIGURE/ZU051300.GIF)
- Session Bean Property
- Click the following button to add or delete the property:
- Add button
- Adds the Session Bean property.
- Note that if you click the Add button, the following tags are inserted at the end of the Session Bean property in the source file:
<session>
<ejb-name>Specify the EJB name for the Session Bean property. </ejb-name>
</session>
|
- Remove button
- Deletes the Session Bean property selected in the list.
(2) Right pane

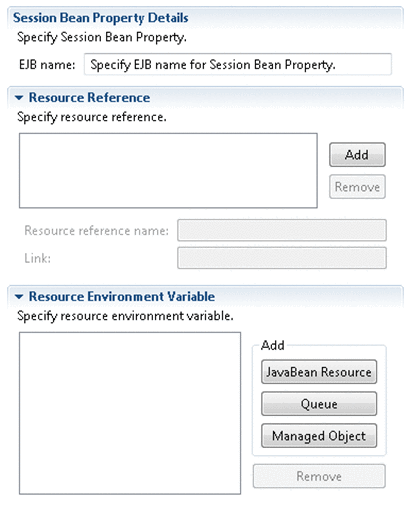

If you select Session Bean Property in the left pane, the following items are displayed in the right pane, and you can specify the property:
![[Figure]](FIGURE/ZU051400.GIF)
- Session Bean Property Details
- Specify the Session Bean property details.
- EJB name
- Specify the key for identifying Session Beans. Corresponds to the value of the <ejb-name> tag under the <session> tag exists under the <ejb-jar> tag.
- Resource Reference
- Specify the resource references.
- Add button
- Adds the resource references.
- Note that if you click the Add button, the following tags are inserted at the end of the resource references tag in the source file:
<resource-ref>
<res-ref-name>Specify the resource reference name.</res-ref-name>
<linked-to>Specify linked-to.</linked-to>
</resource-ref>
|
- You can select the added resource references to specify the following items:
- Resource reference name
Specify the resource reference name of the variables selected in the list. Corresponds to the value of the <res-ref-name> tag under the <resource-ref> tag.
- Link
Specify linked-to for the resource references of variables selected in the list. Corresponds to the value of the <linked-to> tag under the <resource-ref> tag.
- Remove button
- Deletes the resource references selected in the list.
- Resource Environment Variable
- Specify the resource environment variables.
- JavaBean Resource button
- Adds the resource environment variables for JavaBean.
- Note that if you click the JavaBean resource button, the following tags will be inserted at the end of the resource environment variable tag in the source file:
<resource-env-ref>
<resource-env-ref-name>Specify the resource environment variable name.</resource-env-ref-name>
<linked-to>Specify the JavaBean resource name.</linked-to>
</resource-env-ref >
|
- You can select the resource environment variable of the added JavaBean to specify the following items:
- Resource environment variable name
Specify the resource environment variable name of the variables selected in the list. Corresponds to the value of the <resource-env-ref-name> tag under the <resource-env-ref> tag.
- JavaBean resource name
Specify the JavaBean resource name of linked-to for the variables selected in the list. Corresponds to the value of the <linked-to> tag under the <resource-env-ref> tag.
- Queue button
- Adds the resource environment variable for the queue.
- Note that if you click the Queue button, the following tags are inserted at the end of the resource environment variable tag in the Source file:
<resource-env-ref>
<resource-env-ref-name>Specify the resource environment variable name.</resource-env-ref-name>
<linked-queue>
<resource-adapter>Specify the resource adapter name.</resource-adapter>
<queue>Specify the queue name.</queue>
</linked-queue>
</resource-env-ref >
|
- You can select the resource environment variable of the added queue to specify the following items:
- Resource environment variable name
Specify the resource environment variable name of the variables selected in the list. Corresponds to the value of the <resource-env-ref-name> tag under the <resource-env-ref> tag.
- Resource adapter name
Specify the resource adapter name of the variables selected in the list. Corresponds to the value of the <resource-adapter> tag under the <linked-queue> tag that exists under the <resource-env-ref> tag.
- Queue name
Specify the queue name of the variables selected in the list. Corresponds to the value of the <queue> tag under the <linked-queue> tag that exists under the <resource-env-ref> tag.
- Managed Object button
- Adds the resource environment variable of the administration object.
- Note that if you click the Managed Object button, the following tags are inserted at the end of the resource environment variable tag in the source file:
<resource-env-ref>
<resource-env-ref-name>Specify the resource environment variable name.</resource-env-ref-name>
<linked-adminobject>
<resourceadapter-name>Specify the resource adapter name.</resourceadapter-name>
<adminobject-name>Specify the administration object name.</adminobject-name>
</linked-adminobject>
</resource-env-ref >
|
- You can select the resource environment variable of the added administration object to specify the following items:
- Resource environment variable name
Specify the resource environment variable name of the variables selected in the list. Corresponds to the value of the <resource-env-ref-name> tag under the <resource-env-ref> tag.
- Resource adapter name
Specify the resource adapter name of the variables selected in the list. Corresponds to the value of the <resourceadapter-name> tag under the <linked-adminobject> tag that exists under the <resource-env-ref> tag.
- Managed object name
Specify the managed object name of the variables selected in the list. Corresponds to the value of the <adminobject-name> tag under the <linked-adminobject> tag that exists under the <resource-env-ref> tag.
- Remove button
- Deletes the resource environment variables selected in the list.
