This subsection describes how to connect to the embedded database using HiRDB SQL Executer. Note that this subsection describes the procedure using HiRDB SQL Executer with a GUI.

1. Start HiRDB SQL Executer.
2. In the Start menu of Windows, select Program - HiRDB SQL Executer - GUI version HiRDB SQL Executer.

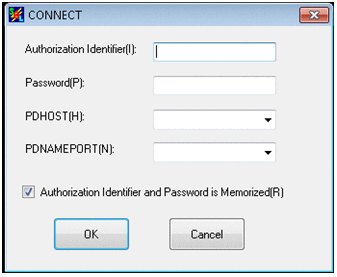

   The CONNECT dialog box is displayed.




3. Specify the following items:


   Items	Specified values
   Authorized Identifier	Specify the authorized identifier when setup is performed using Development Environment Instant Setup, by enclosing that authorized identifier in "" (double quotations). Note that the default user ID is "root".
   Password	Specify the password specified when setup is performed using Development Environment Instant Setup, by enclosing that password in "" (double quotations). Note that the default password is "root".
   PDHOST	Specify the host name of the embedded database built during setup. Specify 'localhost' when the setup is performed using Development Environment Instant Setup.
   PDNAMEPORT	Specify the port number of the embedded database when setup is performed or settings are changed in Development Environment Instant Setup. If you execute Standard setup of Development Environment Instant Setup, specify '22200'.

   Specify the following items as and when required:


   Items	Specified values
   Authorization Identifier and Password is Memorized	Specify whether to store the authorized identifier and password. Checked The authorized identifier and password is memorized. Not checked The authorized identifier and password is not memorized.

4. In the CONNECT dialog box, click the OK button.
   A connection to the embedded database is established. When connected successfully to the embedded database, Connecting is displayed in the title bar of the GUI version of HiRDB SQL Executer.
