If you want to change the timeout settings for the socket operation block used for connecting to the Management Server remote management, change the settings on the Connection page.
Note that you cannot change the settings if you are logged in to the Management Server remote management. Log out from the Management Server remote management, and then change the settings. To change the settings:
- From the Eclipse menu bar, choose Window, and then Preferences.
The Preferences dialog box appears.
- In the left pane tree view, choose Server, Remote Management, and then Connection.

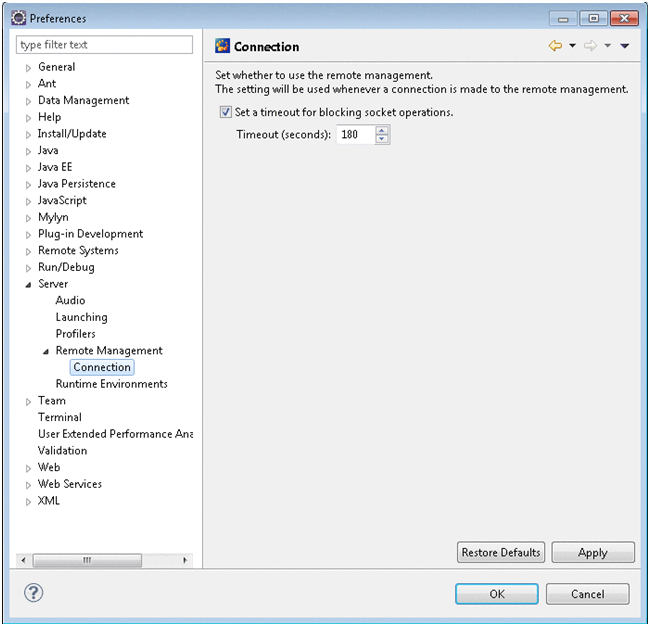

The Connection page appears.
![[Figure]](FIGURE/ZU130130.GIF)
- Change the following items according to the environment to be used:
Item name |
Specified value |
Set a timeout value for the socket operation block |
Specify whether to set a timeout value for the socket operation block.
- Check box is selected
A timeout value will be set.
- Check box is cleared
No timeout value will be set.
|
Timeout (seconds) |
Specify a timeout value (in seconds) for the socket operation block.
You can specify a value in the range from 180 to 99999 seconds. |
- Note
- If processing is executed by using the Management Server remote management, the "Read timeout" message might be displayed when a timeout value is set for the socket operation block. The processing of the Management Server Remote Management might continue even after this message is displayed.
- Click the Apply button or the OK button.
The settings are saved.
- Note
- If the timeout value is changed and you log in to the Management Server Remote Management without storing the timeout value, the changed value is discarded and the operation will be carried out by using the value specified before the change.
