8.24.2 Trace collection points on JavaMail receipt and the trace information that you can collect

Organization of this subsection
(1) Trace collection points and PRF trace collection levels
(2) Trace information that you can collect

(1) Trace collection points and PRF trace collection levels

The following table describes the information such as Event ID, trace collection points, and PRF trace collection level.

Table 8-163 Details of trace collection points on JavaMail receipt

Event ID Numbers used in the figures#1 Trace collection points Level
0xAD80 1 Entry point of the connect(String host, int port, String user, String password) method of the javax.mail.Store class A
0xAD81 14 Exit point of the connect(String host, int port, String user, String password) method of the javax.mail.Store class A
0xAD82 2 Immediately before starting the process to fetch the connection A
0xAD83 3 Immediately after ending the process to fetch the connection A
0xAD84 15 Entry point of the open(int) method of the javax.mail.Folder class A
0xAD85 18 Exit point of the open(int) method of the javax.mail.Folder class A
0xAD86 25 Entry point of the close(boolean) method of the javax.mail.Folder class A
0xAD87 36 Exit point of the close(boolean) method of the javax.mail.Folder class A
0xAD88 34 Immediately before starting the process to terminate the connection B
6 Immediately before starting the process to terminate the connection B
0xAD89 35 Immediately after ending the process to terminate the connection B
7 Immediately after ending the process to terminate the connection B
0xAD8A 19#2 Immediately before starting the process to fetch the entire message
information
A
0xAD8B 22#2 Immediately after ending the process to fetch the entire message information. A
0xAD8C 28#2 Immediately before issuing the DELE command for all the messages to be deleted A
0xAD8D 31#2 Immediately after receiving the response to the DELE command for all the messages to be deleted A
0xAD8E 10 Immediately before starting to issue the USER command A
23#3 Immediately before starting to issue the LIST, UIDL, RETR, or TOP commands A
26 Immediately before starting to issue the RSET command A
8 Immediately before starting to issue the CAPA command A
0xAD8F 11 Immediately after receiving the response to the USER command A
24#3 Immediately after receiving the response to the LIST, UIDL, RETR, or TOP command A
27 Immediately after receiving the response to the RSET command A
9 Immediately after receiving the response to the CAPA command A
0xAD90 12 Immediately before starting to issue the PASS command B
16 Immediately before starting to issue the STAT command B
20#4, #5 Immediately before starting to issue the TOP or LIST command B
29#5 Immediately before starting to issue the DELE command B
32 Immediately before starting to issue the QUIT command B
37#6 Immediately before starting to issue the NOOP command B
0xAD91 13 Immediately after receiving the response to the PASS command B
17 Immediately after receiving the response to the STAT command B
21#4, #5 Immediately after receiving the response to the TOP command B
30#5 Immediately after receiving the response to the DELE command B
33 Immediately after receiving the response to the QUIT command B
38#6 Immediately after receiving the response to the NOOP command B
0xAD92 4 Immediately before receiving the server response on connection B
0xAD93 5 Immediately after receiving the server response on connection B

Legend:
A: Standard
B: Detail

#1
Corresponds to the numbers used in Figure 8-104 or Figure 8-105.

#2
Fetched at the start and end of receiving the entire mail information.

#3
If not called by specifying ENVELOPE in the 2nd argument of the fetch method of the javax.mail.Folder class.

#4
Only if called by specifying ENVELOPE in the 2nd argument of the fetch method of the javax.mail.Folder class.

#5
Fetched at the start and end of receiving the individual mail information.

#6
Collected only when connected to the server.

The following figure shows the trace collection points on JavaMail receipt.

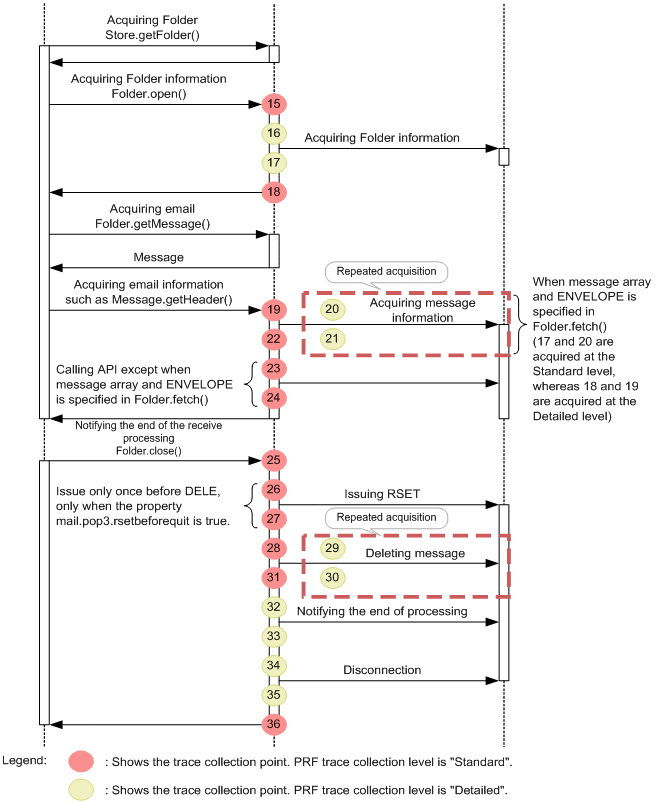

Figure 8-104 Trace collection points on JavaMail receipt

[Figure]

[Figure]

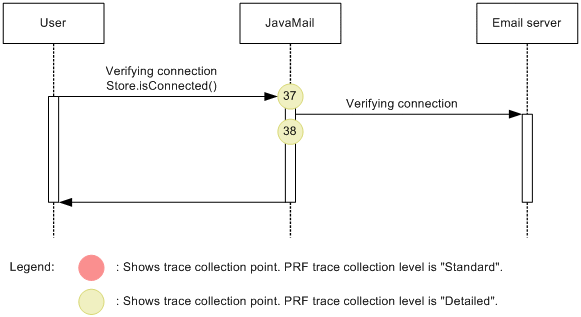

Figure 8-105 Trace collection point on confirming the JavaMail connection

[Figure]

(2) Trace information that you can collect

The following table describes the trace information that you can collect on JavaMail receipt.

Table 8-164 Trace information that you can collect on JavaMail receipt

Numbers used in the figures#1 Event ID Level Interface name Operation name Option
1 0xAD80 A -- -- --
2 0xAD82 A -- -- #2
3 0xAD83 A -- -- Exception class name in the event of an abnormality
4 0xAD92 B String that shows communication#3 -- --
5 0xAD93 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
6 0xAD88 B -- -- --
7 0xAD89 B -- -- Exception class name in the event of an abnormality
8 0xAD8E A String that shows communication #3 -- --
9 0xAD8F A String that shows communication #3 Response code from the mail server #4 Name of the exception class if an error occurs
8 0xAD8E A String that shows communication#3 -- --
9 0xAD8F A String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
10 0xAD90 B String that shows communication#3 -- --
11 0xAD91 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
12 0xAD81 A -- -- Exception class name in the event of an abnormality
13 0xAD84 A -- -- --
14 0xAD90 B String that shows communication#3 -- --
15 0xAD91 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
16 0xAD85 A -- -- Exception class name in the event of an abnormality
17#5 0xAD8A A -- -- --
18 0xAD90 B String that shows communication#3 -- --
19#6 0xAD91 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
20#5 0xAD8B A -- -- Exception class name in the event of an abnormality
21 0xAD8E A String that shows communication#3 -- --
22#6 0xAD8F A String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
23 0xAD86 A -- -- --
24 0xAD8E A String that shows communication#3 -- --
25 0xAD8F A String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
26 0xAD8C A -- -- --
27 0xAD90 B String that shows communication#3 -- --
28 0xAD91 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
29 0xAD8D A -- -- Exception class name in the event of an abnormality
30 0xAD90 B String that shows communication#3 -- --
31 0xAD91 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality
32 0xAD88 B -- -- --
33 0xAD89 B -- -- Exception class name in the event of an abnormality
34 0xAD87 A -- -- Exception class name in the event of an abnormality
35 0xAD90 B String that shows communication#3 -- --
36 0xAD91 B String that shows communication#3 Response code from the mail server#4 Exception class name in the event of an abnormality

Legend:
A: Standard
B: Detail
--: Not applicable

#1
Corresponds to the numbers used in Figure 8-104 or Figure 8-105.

#2
Outputs the following items:
Timeout value for fetching host name, port number, and connection. Communication timeout value.
Each of the items should be output by separating them with a space.
0 is output if the timeout is set to infinite. -1 is output, if the user omits the timeout setting.
(Example) localhost 25 10000 10000

#3
The following table describes the output contents of the strings that show communication:

Sr. No. String that shows communication Communication process
1 -- (Not applicable) Fetch connection
2 connect-mail-server Fetch server response on connection
3 USER Issue USER command
4 PASS Issue PASS command
5 QUIT Issue QUIT command
6 STAT Issue STAT command
7 LIST command arguments Issue LIST command
8 UIDL command arguments Issue UIDL command
9 RETR command arguments Issue RETR command
10 TOP command arguments Issue TOP command
11 DELE command arguments Issue DELE command
12 NOOP Issue NOOP command
13 RSET Issue RSET command
14 CAPA Issuing the CAPA command

#4
Response code is output only if the 1st line of the response is received. Response code is not output, if the response is not received due to the abnormal conditions such as occurrence of IOException in communication.

#5
The following table describes the output contents of responses:

Response Output contents
Response code is correct (satisfies the RFC specifications) Response code
Response code is incorrect (does not satisfy the RFC specifications) Header 4 letters of the 1st line of the response (See KDJE59112-E message for details)
  • If the 1st line is less than 4 letters
    Output all the letters present in the 1st line
  • No response
    Output empty string

#6
For the commands (RETR command, TOP command, and UIDL command) that receive multiple-line response, return code 0 is output on fetching the 1st line of the response.
